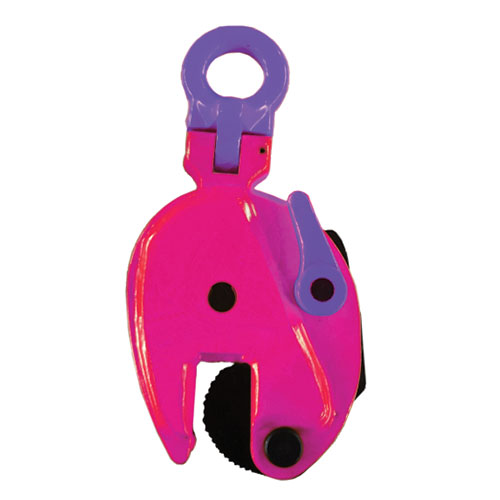

Universal Plate Clamp

Category:

The Challenger universal plate clamps are suitable for the lifting  and transferring of non-sagging steel plates in a vertical or horizontal position.


  • They are compact and light-weight without compromising the quality of the design.
  • 2 year warranty.
  • Complies with Australian Standard: AS 4991.


Download product brochure
Product manual coming soon

Part No. WLL
(tonnes)		 Jaw Opening
(mm)		 A
(mm)		 B
(mm)		 C
(mm)		 D
(mm)		 Emin
(mm)		 F
(mm)		 Gmax
(mm)		 H
(mm)		 Weight
(kg)
171201 0.5 0-15 30 43 34 0-17 106 10 216 50 2
171202 1 0-20 48 63 50 0-22 145 12 292 66 4.5
171203 2 0-25 68 78 61 0-27 174 16 369 76 7.3
171204 3 0-30 74 85 57 0-32 207 20 428 102 15
171205 5 0-50 80 100 66 0-52 240 24 481 110 21.6
