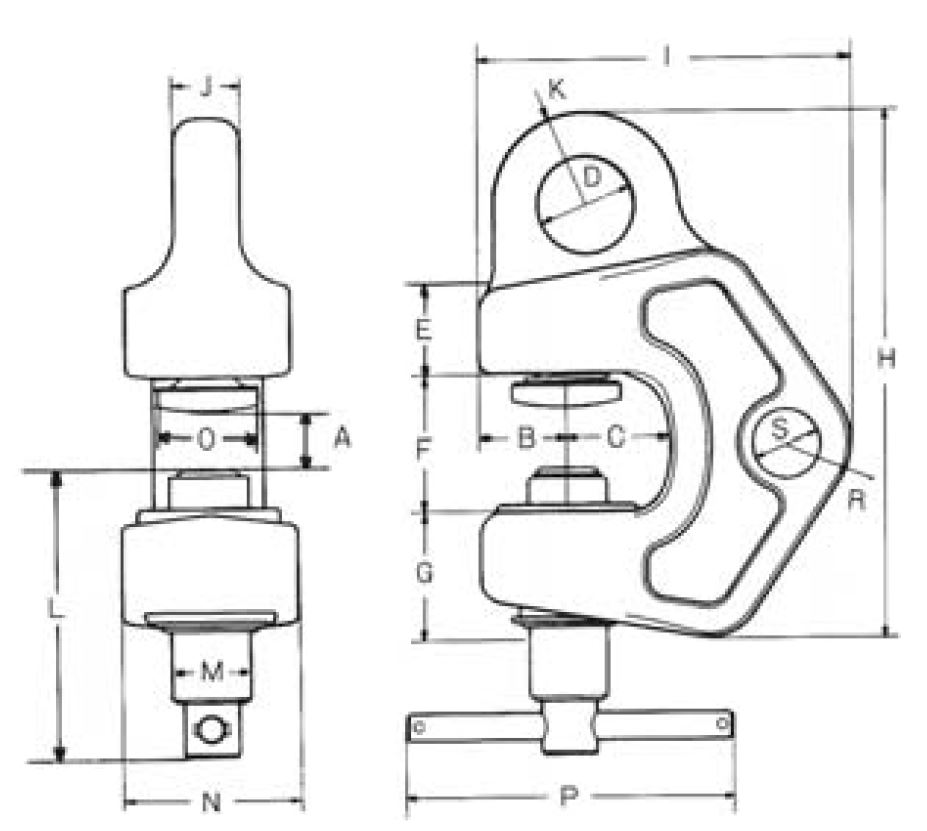

| Part No. | WLL (tonnes) | Hardness Range | Effective Thickness (mm) | D (mm) | F (mm) | H (mm) | I (mm) | J (mm) | L (mm) | N (mm) | O (mm) | P (mm) | Q (mm) | S (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 172101 | 0.5 | Hv 85-600 | 1-25 | 27 | 41 | 140 | 223 | 15 | 96 | 46 | 26 | 150 | 15 | 27 | 1.8 |
| 172102 | 1 | Hv 85-600 | 1-40 | 32 | 61 | 203 | 166 | 18 | 124 | 55 | 36 | 150 | 22 | 32 | 4 |
| 172103 | 2 | Hv 85-600 | 1-40 | 36 | 65 | 210 | 183 | 25 | 134 | 70 | 44 | 150 | 25 | 32 | 7.6 |
| 172104 | 3 | Hv 85-600 | 5-35 | 45 | 60 | 240 | 170 | 30 | 137 | 80 | 50 | 150 | 30 | 31 | 8.3 |
