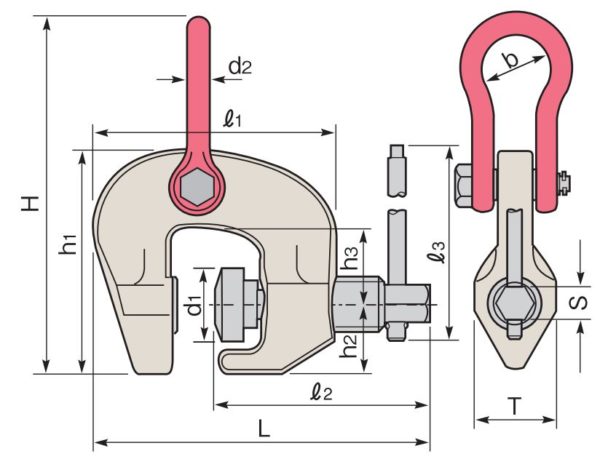

Part No. | WLL (tonnes) | L (min) | e1 (mm) | e2 (mm) | e3 (mm) | H (mm) | h1 (mm) | d1 (mm) | d2 (mm) | b (mm) | T (mm) | S (mm) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
172001 | 0.5 | 156 | 104 | 89 | 60 | 113 | 76 | 26 | 10 | 17 | 30 | 14 |
172002 | 1 | 175 | 148 | 126 | 190 | 204 | 128 | 42 | 12 | 83 | 45 | 21 |
172003 | 1.5 | 187 | 154 | 135 | 200 | 229 | 153 | 42 | 16 | 45 | 46 | 21 |
172004 | 3 | 224 | 190 | 165 | 250 | 265 | 165 | 49 | 19 | 50 | 54 | 21 |
172005 | 6 | 291 | 255 | 215 | 250 | 365 | 214 | 63 | 31.5 | 80 | 69 | 21 |

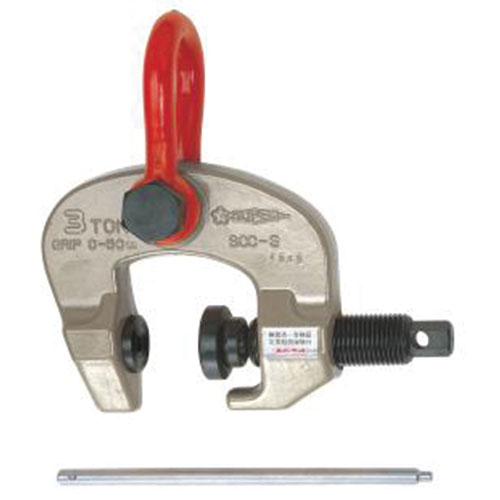

Screw Cam Clamp
Screw cam clamps are suitable for lifting of a large variety of different shaped steel, ranging from steel plates and structured steel to curved and spherical shaped steels.
- When the clamp is under a load, the cam will tilt in accordance with the weight of the load.
- Complies with Australian Standard: AS 4991.
