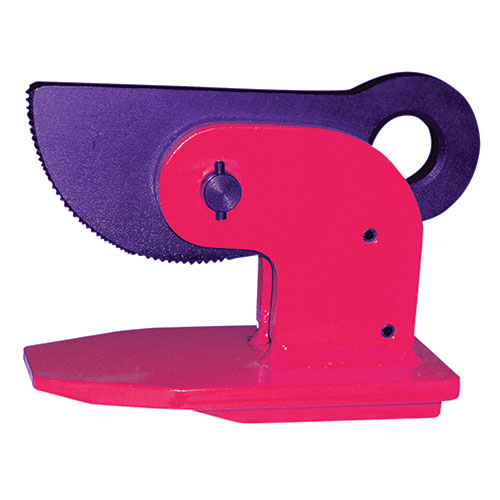

Horizontal Plate Clamp

Category:

The Challenger horizontal plate clamps are suitable for the lifting  and transferring of non-sagging steel plates in a vertical or horizontal position.


  • They are compact and light-weight without compromising the quality of the design.
  • 2 year warranty.
  • Complies with Australian Standard: AS 4991.


Download product brochure
Product manual coming soon

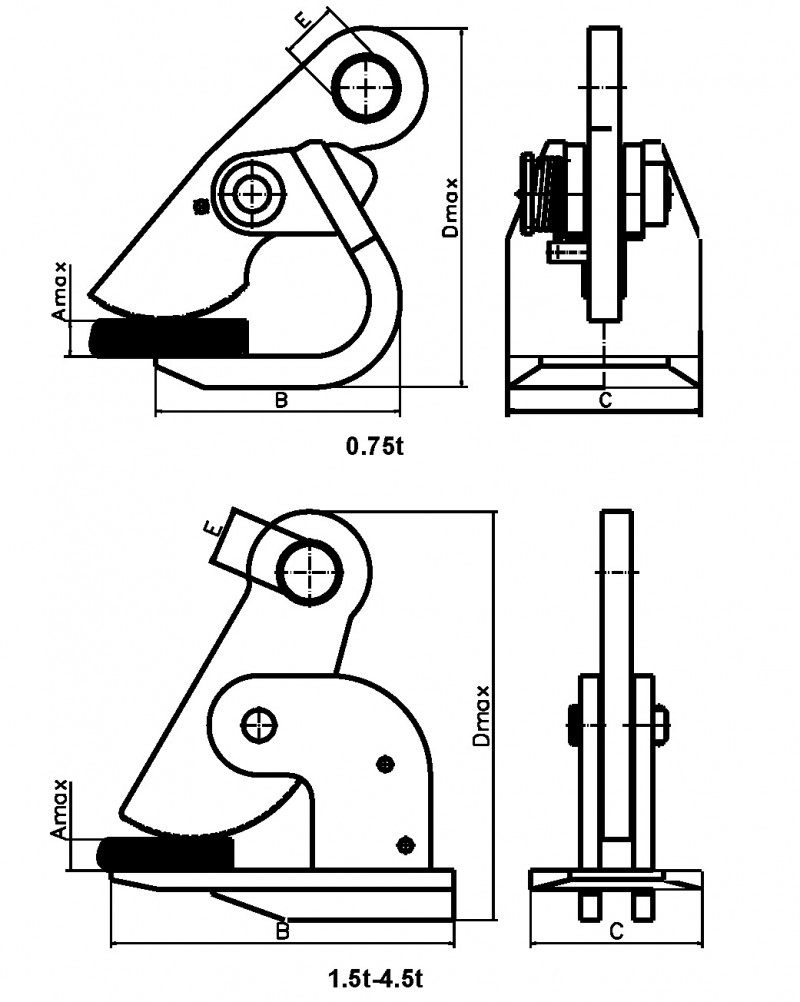

Part No. WLL
(tonnes/per pair)
Jaw Opening
(mm)
A max
(mm)
B
(mm)
C
(mm)
D max
(mm)
E
(mm)
Weight
(kg)
173101 1.5 0-50 50 127 100 218 30 4.1
173102 3 0-50 50 220 110 270 36 7.4
173103 5 0-60 60 260 130 315 40 13.8
173104 9 0-100 100 290 165 425 40 28.6
