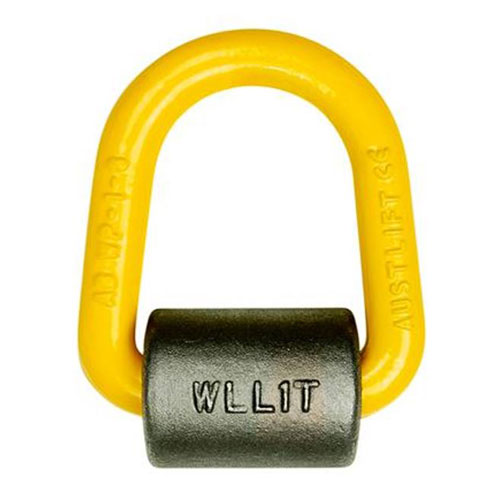

Weld On Lug

Weld on lifting points can be welded on any carbon steel surface as a lifting point, or to be used as a fixed anchor point for spreader beam attachment. Weld on lifting points are also commonly used as an anchor point for load restraint applications.


  • Marked with chain size, batch number, grade, WLL, Austlift branded with manufacture quality mark.
  • Batch tested, test certificates available upon request.
  • Welding instructions supplied with each unit.


Download coming soon

Part No.WLL
(tonnes)
B
(mm)
D
(mm)
C
(mm)
C1
(mm)
W
(mm)
Weight
(kg)
1611011t55143595.7500.55
1611023t64175999580.9
1611035t702270137641.8
1611048t6926.58614466.52.5
