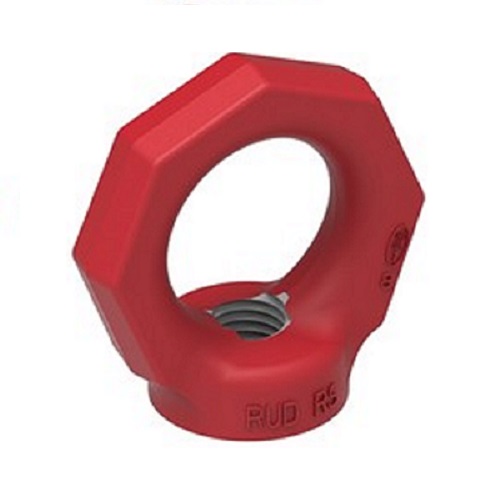

RM Eye Nut, Metric Thread

The RUD RM Eye Nut is one of the leading lifting eye bolts on the market. Higher WLL in comparison to DIN 580.


  • Higher WLL in comparison to DIN 580
  • Clear marking of the minimum WLL
  • Comprehensive range of threads


Download coming soon
Product manual coming soon

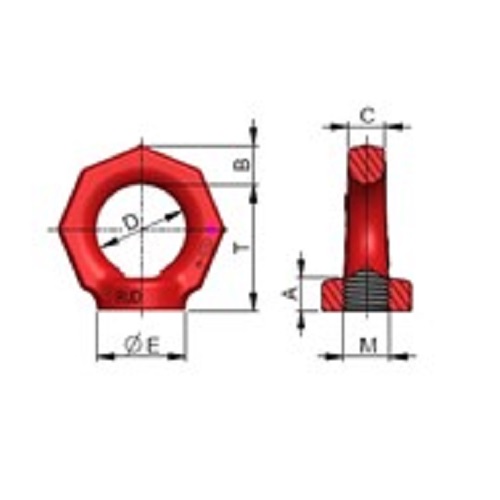

Part No. WLL (tonnes) M (mm) T (mm) A (mm) B (mm) C (mm) D (mm) E (mm) Weight (kg)
55254 0.1t 6 34 11 11 10 25 25 0.1
55255 0.2t 8 34 11 11 10 25 25 0.1
55258 0.25t 10 34 11 11 10 25 25 0.1
55271 0.4t 12 41 12 13 12 30 30 0.16
55281 0.75t 14 48 13 15 14 35 35 0.26
55460 0.8t 16 48 13 15 14 35 35 0.26
55342 1.2t 18 55 16 17 16 40 40 0.4
55343 1.5t 20 55 16 17 16 40 40 0.39
55387 1.5t 22 70 20 21 20 50 50 0.7
55394 2t 24 70 20 21 20 50 50 0.78
55399 2t 27 85 25 26 24 60 60 1.35
55438 3t 30 85 25 26 24 60 60 1.32
7994437 3t 33 130 37 43 38 90 100 5.8
53093 4t 36 130 37 43 38 90 100 5.8
7904790 5t 39 130 37 43 38 90 100 5.65
53095 6t 42 130 37 43 38 90 100 5.5
53098 8t 48 130 37 43 38 90 100 5.3
