Swivel Lifting Points, Metric Thread

Categories: ,

Swivel lifting points are used in a wide variety of industrial lifting applications and are ideal for machinery and various lifting and lashing applications.


  • 360° swivel with 180º pivot function
  • Rated at 100% at 90º angle
  • Bolts are metric thread grade 10.9 alloy socket head screw


Product Brochure coming soon
Product manual coming soon

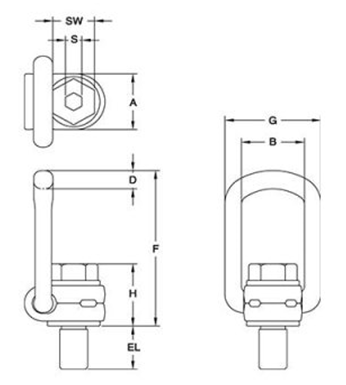

Part No. WLL (tonnes) Torque
in Nm		 B
(mm)		 EL
(mm)		 L1
(mm)		 A
(mm)		 G
(mm)		 D
(mm)		 F
(mm)		 H
(mm)		 S
(mm)		 Weight
(kg)

168101 M10 0.63t 60 35 16 50 30 55 10 85 36 8 0.3
168102 M12 1.0t 100 37 18 60 33 57 13.5 98 44 8 0.5
168103 M16 1.5t 150 37 24 60 33 57 13.5 98 46 10 0.5
168104 M20 2.5t 250 54 31 80 50 82 16.5 140 57 12 1.3
168105 M24 4.0t 400 54 36 85 50 82 16.5 140 59 14 1.4
 168106 M27 4.0t 400 65 38 110 60 99 22.5 170 79 17 2.8
168108 M30 5.0t 500 65 49 115 60 99 22.5 170 81 17 3.1
168109 M36 7.0t 700 65 54 125 60 99 22.5 178 88 22 3.3
168110 M36 8.0t 800 85 62 140 77 124 26.5 225 101 22 5.8
168111 M42 10.0t 1000 85 72 150 77 124 26.5 225 104 24 6.3
168112 M42 15.0t 1500 104 64 150 95 158 36 261 117 24 10.9
168113 M48 20.0t 2000 104 73 160 95 158 36 261 121 27 11.6
