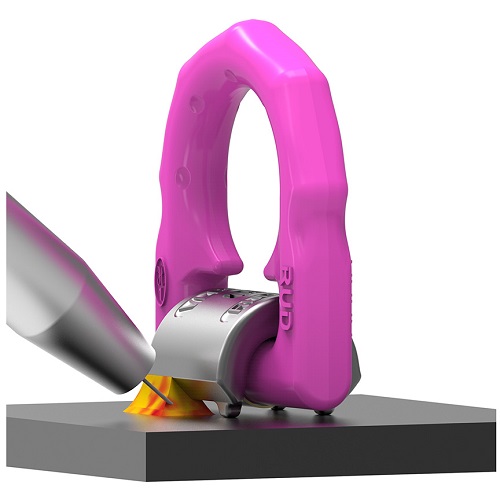

The VLBS Load ring offers a functional, compact innovative design. The rings are 100% electro-magnetic crack tested and painted in the unique durable RUD pink powder coat finish. The protected spring keeps the ring bracket in every required position without tipping.
The Load ring provides full WLL in any direction with 4:1 lifting design factor. Rated capacity can be increased 100% in specific lashing applications. Stainless Steel Load Rings available up to 2000kg WLL.
Available with or without internal position holding springs.

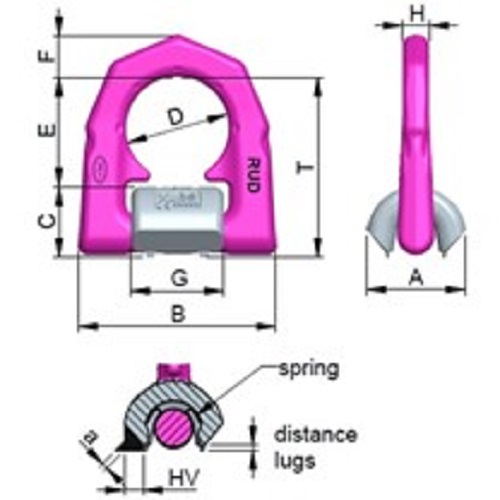

| Part No. | WLL (tonnes) | A (mm) | B (mm) | T (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 161001 | 1.5t | 33 | 66 | 65 | 25 | 38 | 40 | 14 | 33 | 14 | 0.35 |
| 161002 | 2.5t | 36 | 77 | 75 | 27 | 45 | 48 | 16 | 40 | 14 | 0.48 |
| 161003 | 4t | 42 | 87 | 83 | 31 | 51 | 52 | 18 | 46 | 16 | 0.76 |
| 161004 | 6.7t | 61 | 115 | 117 | 44 | 67 | 73 | 24 | 60 | 22 | 1.9 |
| 161005 | 10t | 75 | 129 | 126 | 55 | 67 | 71 | 26.5 | 60 | 26.5 | 2.9 |
| 161006 | 16t | 176 | 96 | 192 | 70 | 100 | 106 | 40 | 90 | 26 | 7.12 |
