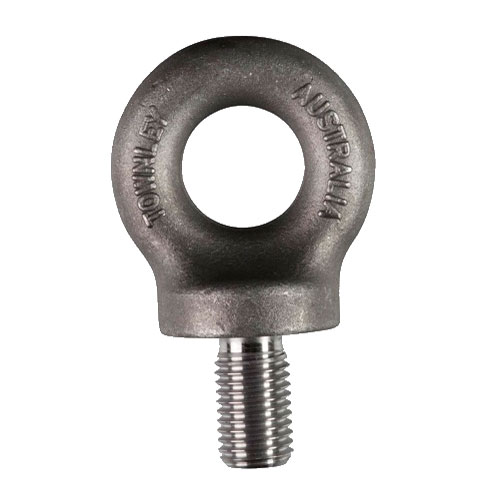

Eyebolt (G4)

Each eyebolt is clearly stamped with the permitted F2 WLL. F2 WLL – indicates safe use for non-axial lifts. F1 WLL – indicates loads which are in line with the axis of the threaded end of the eyebolt.

FeaturesDownloadManual

Complies to AS 2317
6:1 Safety Factor
Manufactured using only heat certified Australian Steel

Product brochure coming soon

Product manual coming soon

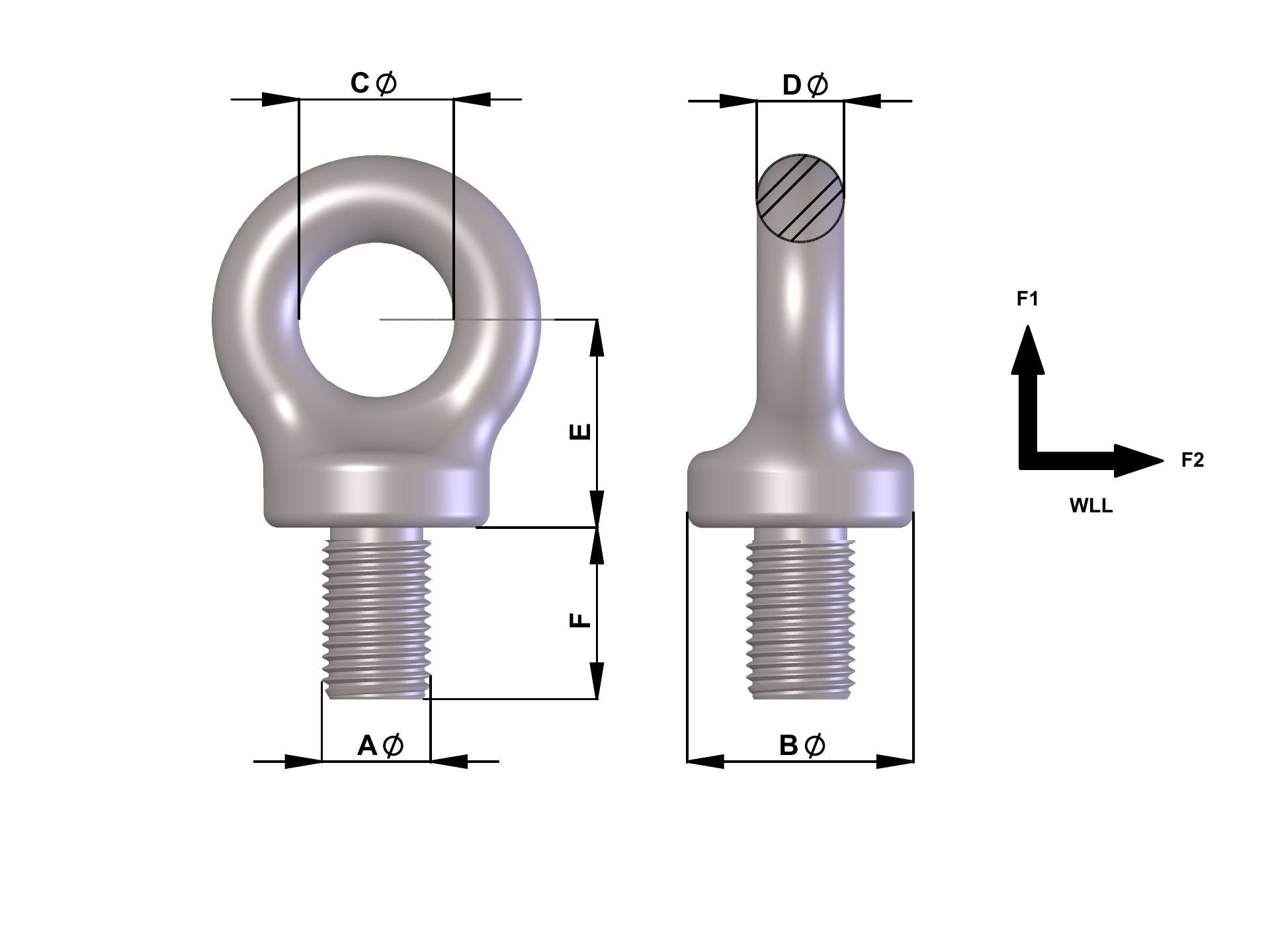

Part No.	Size (mm)	Type	WLL Transverse F2 (tonnes)	WLL Axial F1 (tonnes)	Thread Pitch	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	Weight (kg)
151011	6	Metric Course	N/A	N/A	1	21	14	9	19	17	0.06
151012	8	Metric Course	N/A	N/A	1.25	21	14	9	19	17	0.06
151013	10	Metric Course	0.06	0.25	1.5	21	14	9	19	17	0.06
151021	10	Metric Fine	0.06	0.25	1.25	21	14	9	19	18	0.06
151014	12	Metric Course	0.1	0.4	1.75	28	18	11	24	22	0.15
151022	12	Metric Fine	0.1	0.4	1.5	28	19	11	24	23	0.15
151015	14	Metric Course	0.1	0.4	2	35	24	15	31	27	0.28
151016	16	Metric Course	0.2	0.8	2	35	24	15	31	27	0.28
151023	16	Metric Fine	0.2	0.8	1.5	35	24	15	31	30	0.28
151017	18	Metric Course	0.2	0.8	2.5	42	29	16	35	40	0.46
151018	20	Metric Course	0.4	1.6	2.5	42	29	16	35	40	0.46
151024	20	Metric Fine	0.4	1.6	1.5	42	29	16	35	40	0.46
151019	22	Metric Course	0.5	2	2.5	50	33	20	41	41	0.85
151025	22	Metric Fine	0.5	2	1.5	50	33	20	41	41	0.85
1510110	24	Metric Course	0.62	2.5	3	57	38	22	48	42	1.1
151026	24	Metric Fine	0.62	2.5	2	57	38	22	48	46	1.1
1510111	27	Metric Course	0.62	2.5	3	71	48	28	65	52	2.1
1510112	30	Metric Course	1	4	3.5	71	48	28	65	52	2.1
151027	30	Metric Fine	1	4	2	71	48	28	65	50	2.1
1510113	33	Metric Course	1.25	5	3.5	71	48	28	65	52	2.2
151028	33	Metric Fine	1.25	5	2	71	48	28	65	50	2.2
1510114	36	Metric Course	1.57	6.3	4	86	54	33	73	63	3.7
151029	36	Metric Fine	1.57	6.3	2	86	55	33	73	66	3.7
1510115	39	Metric Course	1.75	7	4	86	54	33	73	64	3.7
1510210	39	Metric Fine	1.75	7	2	86	55	33	73	66	3.7
1510116	42	Metric Course	2	8	4.5	102	68	40	90	79	6.3
1510211	42	Metric Fine	2	8	2	102	66	40	90	77	6.3
1510117	48	Metric Course	2.5	10	5	115	76	49	99	89	9.5
1510212	48	Metric Fine	2.5	10	3	115	72	49	99	89	9.5
1510118	56	Metric Course	3.7	15	5.5	143	97	56	124	116	19.5
1510213	56	Metric Fine	3.7	15	4	143	95	56	124	111	19.5
1510119	64	Metric Course	5	2	6	143	97	56	124	116	19.5
1510214	64	Metric Fine	5	20	4	143	95	56	124	111	19.5
1510120	72	Metric Course	6.2	25	6	163	106	66	140	125	29
1510121	76	Metric Course	7.5	30	6	163	106	66	140	125	29
1510215	76	Metric Fine	7.5	30	4	163	106	66	140	125	29
