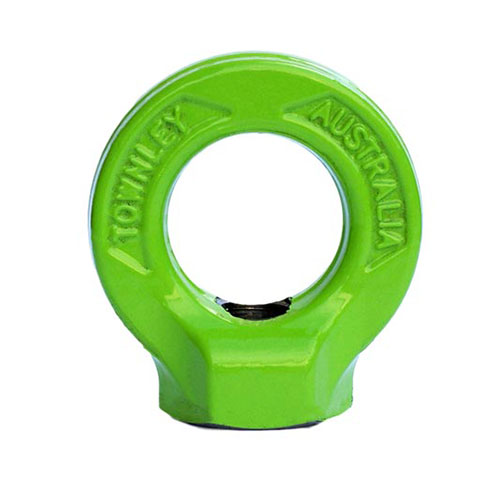

Eye Nut (G8)

Grade 8 eye nuts offer up to 4 times higher lifting capacity in certain applications. The larger internal eye diameter offers a versatile alternative to standard Grade 4 eye nuts.


  • Manufactured exclusively from Australian Made Steel.
  • Electromagnetic crack testing to AS 1171.
  • Special thread forms made to order.


Download coming soon

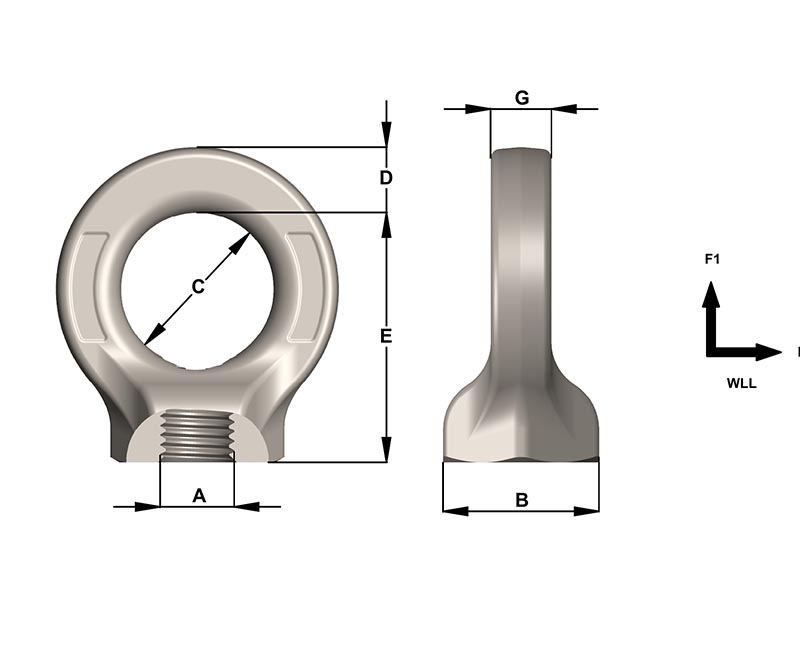

Part No.Size
(mm)
TypeWLL F1
(tonnes)
WLL F2
(tonnes)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
G
(mm)
Weight
(kg)
1521018Metric Course0.80.227301248100.17
15210210Metric Course10.2527301248100.17
15210312Metric Course1.60.427301248100.17
15210416Metric Course4134341556140.37
15210520Metric Course61.641401770160.6
15210624Metric Course82.550502085181.1
15210727Metric Course82.550502085181.1
15210830Metric Course123606026105262.6
15210933Metric Course123727234120323.7
15211036Metric Course164727234120323.7
