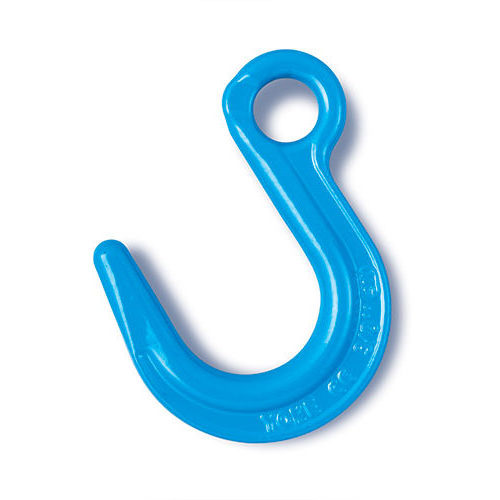

Eye Foundry Hook (G100)

G100 eye foundry hook is suitable for foundry applications and unusually bulky attachment points.

FeaturesDownloadManual

Not used for general chain sling applications, rather for use where a large throat opening is necessary.
Blue painted finish.
Complies with Australian Standard AS 3776

Product brochure coming soon

Product manual coming soon

Part No.	Chain Size (mm)	WLL (t)	A (mm)	P (mm)	D (mm)	K (mm)	T (mm)	H (mm)	Weight (kg)
197108	8	2.5	24	62	12	123	19	27	0.8
197110	10	4	32	74	15	149	23	32	1.6
197113	13	6.7	40	88	19	180	32	39	2.5
197116	16	10	50	98	25	213	41	47	4.4
197120	20	16	60	113	26	248	46	57	9.3
