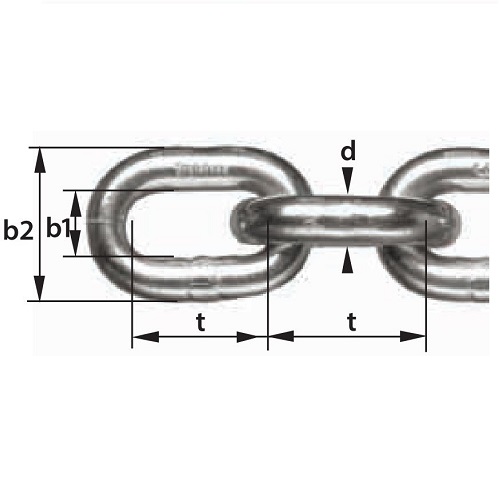

| Part No. | Chain Size (mm) | WLL (tonnes) | d (mm) | t (mm) | b1 (mm) | b2 max (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 811004 | 4 | 0.4 | 4 | 12 | 5 | 13.7 | 0.35 |
| 811005 | 5 | 0.63 | 5 | 15 | 6.5 | 18.5 | 0.54 |
| 811006 | 6 | 0.9 | 6 | 18 | 7.8 | 22.2 | 0.80 |
| 811007 | 7 | 1.25 | 7 | 21 | 9.1 | 25.9 | 1.10 |
| 811008 | 8 | 1.55 | 8 | 24 | 10.4 | 29.6 | 1.40 |
| 811010 | 10 | 2.45 | 10 | 30 | 13 | 37 | 2.20 |
| 811013 | 13 | 3.85 | 13 | 39 | 16.9 | 48.1 | 3.80 |
| 811016 | 16 | 6 | 16 | 48 | 20.8 | 59.2 | 5.70 |
| 811018 | 18 | 8 | 18 | 54 | 24.3 | 64.8 | 7.30 |
