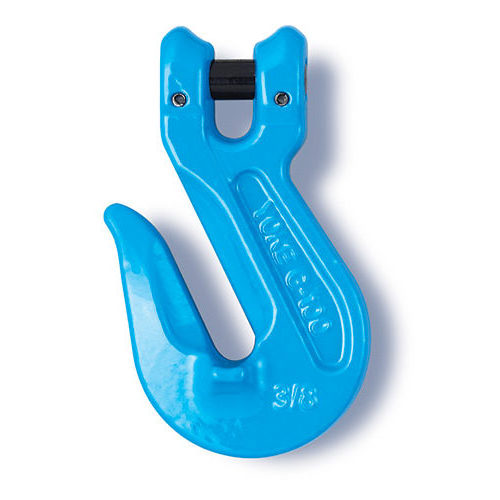

Clevis Grab Hook (G100)

G100 Clevis grab hooks are specifically designed to shorten grade 100 chain in chain sling assemblies.

FeaturesDownloadManual

No reduction in WLL when used as a shortening hook on cradle type with supporting wings.
Traditional design in a blue painted finish.
Complies with Australian Standard AS 3776

Product manual coming soon

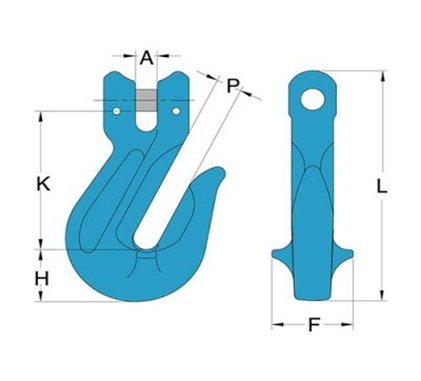

Part No.	Chain Size (mm)	WLL (t)	A (mm)	P (mm)	F (mm)	K (mm)	H (mm)	L (mm)	Weight (kg)
1351008	8	2.5	10	10	30	54	22	93	0.4
1351010	10	4	11	13	41	77	29	128	0.8
1351013	13	6.7	15	17	52	99	38	165	1.6
1351016	16	10	18	21	57	114	45	195	2.7
1351020	20	16	22	23	73	130	52	222	4.5
1351022	22	19	24	26	70	139	56	247	6.5
