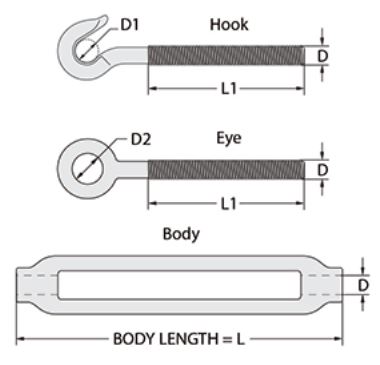

Part No. | Size (mm) | B (mm) | DL (mm) | L1 (mm) | E (mm) | Weight (kg) |
---|---|---|---|---|---|---|
525505 | 5 | 5 | 7 | 70 | 32 | 0.034 |
525506 | 6 | 6 | 8 | 80 | 35 | 0.052 |
525508 | 8 | 8 | 10 | 105 | 50 | 0.098 |
525510 | 10 | 10 | 16 | 130 | 62 | 0.226 |
525512 | 12 | 12 | 18 | 140 | 65 | 0.338 |
525516 | 16 | 16 | 24 | 178 | 88 | 0.898 |
525520 | 20 | 20 | 28 | 215 | 110 | 1.595 |
525522 | 22 | 22 | 32 | 240 | 120 | 2.18 |
525524 | 24 | 24 | 36 | 255 | 135 | 2.8 |

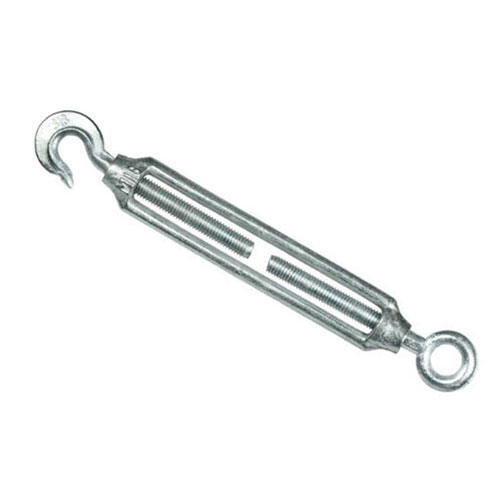

Hook/Eye Commercial Turnbuckle
Hook/Eye Commercial Turnbuckle used in conjunction with wire rope assemblies etc. for light duty tensioning applications.
- Manufactured from malleable cast steel in zinc plated finish.
- Hook and eye end fittings for intended applications.
- Sizes available from 5mm to 24mm
