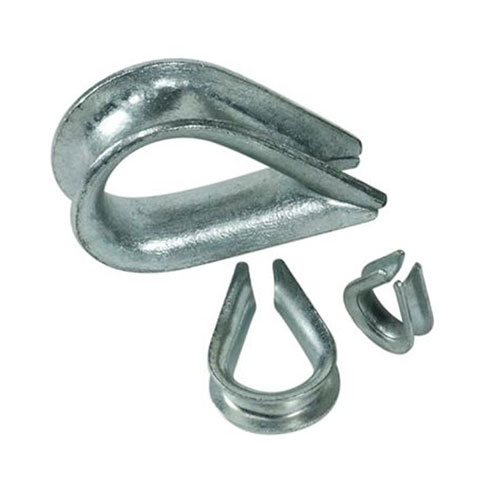

Commercial Thimble

Commercial thimbles are zinc plated and are not designed for lifting applications.


  • Zinc plated finish and made from light gauge steel.
  • Sizes available are from 3mm to 25mm.
  • Tolerances may vary for commercial products.


Download coming soon

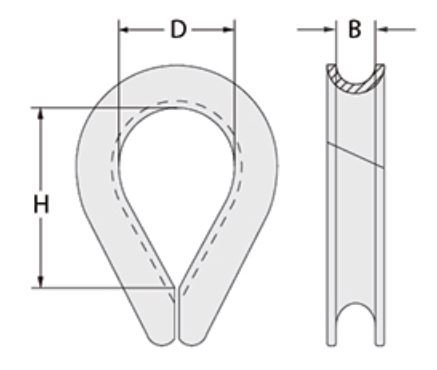

Part No.Size
(mm)
B
(mm)
D
(mm)
H
(mm)
Weight
(kg)
5223043-4417.2532.750.015
5223055517.2532.750.015
5223066717.2532.750.018
52230888.520.2537.50.03
5223101010.2523.540.750.043
5223121213.2528.25470.062
5223161616.534.556.250.105
5223202019.540.7562.50.215
5223222223.54787.50.34
5223252526.562.5106.250.48
