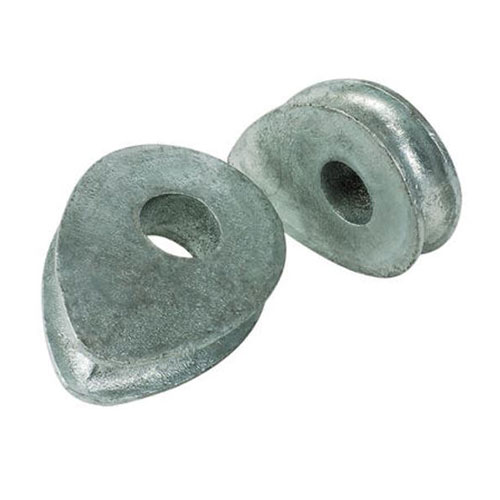

Thimble Solid Heart

Solid heart thimbles are commonly used to terminate crane ropes and are ideal where the thimble is required to interface directly.


  • Made from heat treated high tensile steel material.
  • Hot dipped galvanized finish.
  • Pre-drilled pilot hole.


Download coming soon

Part No. Size (mm) MBF (kN) A (mm) B (mm) C (mm) E (mm) W (mm) Weight (kg)
522418 14 124 56 40 15 9 10 0.7
522420 16 161 70 50 17.5 11 10 1
522422 18 204 130 90 28.5 20 10 1.49
522424 20 252 140 100 31 22 10 1.93
522428 28 494 200 140 42 31 10 5
522432 32 646 220 160 47 35 10 6.7
522440 40 1010 280 200 58 44 10 12.7
