Part No. | Vertical WLL (t) | Length | Colour Code | Choke WLL (t) | Basket WLL (t) | 60 Deg. WLL (t) | 90 Deg. WLL (t) | 120 Deg. WLL (t) | Weight (kg) |
---|---|---|---|---|---|---|---|---|---|
132501 | 5t | 1m | Red | 4 | 10 | 8.5 | 7 | 5 | 1.3 |
132515 | 5t | 1.5m | Red | 4 | 10 | 8.5 | 7 | 5 | 1.89 |
132502 | 5t | 2m | Red | 4 | 10 | 8.5 | 7 | 5 | 2.55 |
132525 | 5t | 2.5m | Red | 4 | 10 | 8.5 | 7 | 5 | 3.17 |
132503 | 5t | 3m | Red | 4 | 10 | 8.5 | 7 | 5 | 3.75 |
132535 | 5t | 3.5m | Red | 4 | 10 | 8.5 | 7 | 5 | 4.4 |
132504 | 5t | 4m | Red | 4 | 10 | 8.5 | 7 | 5 | 5 |
132545 | 5t | 4.5m | Red | 4 | 10 | 8.5 | 7 | 5 | 5.51 |
132505 | 5t | 5m | Red | 4 | 10 | 8.5 | 7 | 5 | 6.15 |
132555 | 5t | 5.5m | Red | 4 | 10 | 8.5 | 7 | 5 | 6.79 |
132506 | 5t | 6m | Red | 4 | 10 | 8.5 | 7 | 5 | 7.42 |
132508 | 5t | 8m | Red | 4 | 10 | 8.5 | 7 | 5 | 9.39 |
132510 | 5t | 10m | Red | 4 | 10 | 8.5 | 7 | 5 | 11 |

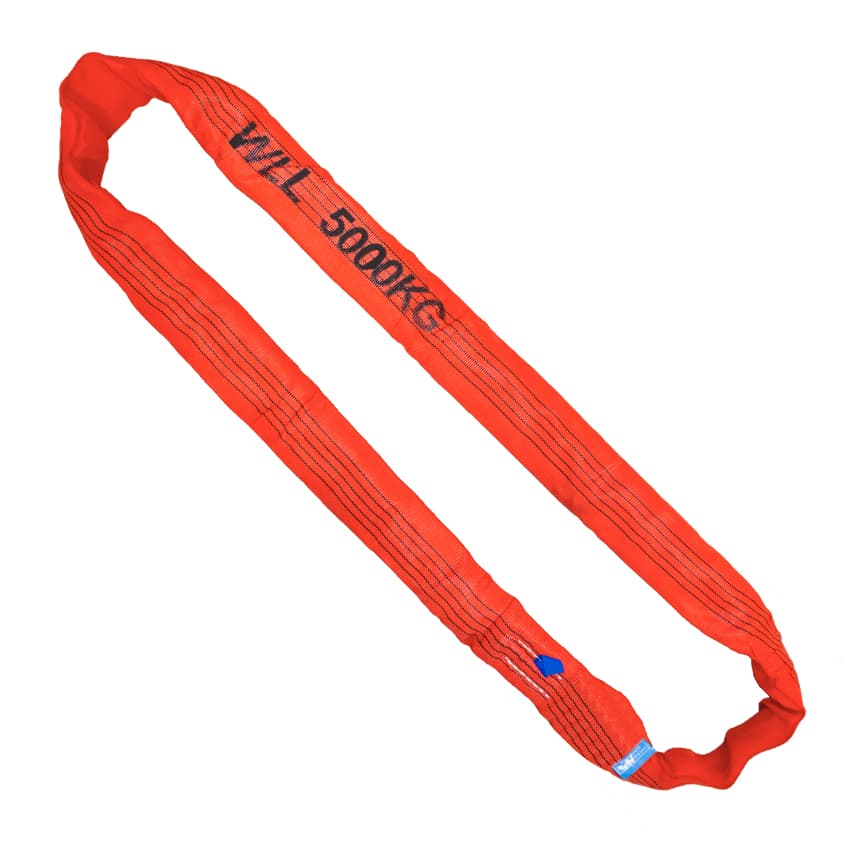

5t Round Sling
Synthetic lifting slings are a preferred choice lifting solution because they are lightweight, flexiable and versatile.
- Fabricated using 100% high tenacity polyester yarn and wound in a continuous hank to form an endless sling.
- Conforms to Australian Standard AS 4497.
