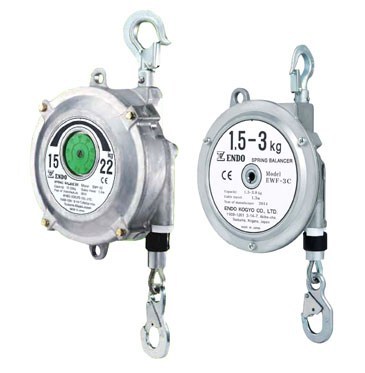

X Series Spring Balancers (Food Grade)

X Series Endo Spring Balancers ideal for suspension of electric or pneumatic power tools, or for hanging tools or parts in food industries.


  • No painting and SUS parts and food grease on spring.
  • Stainless steel rope, lower hook, rivets, plug, bolts and screws.
  • Zinc plated upper hook and pin


Download coming soon

Part No.ModelCapacity
Min (kg)
Capacity
Max (kg)
Stroke
(m)
Weight
(kg)
262201ELF-3X1.532.54.6
262202ELF-5X3.052.54.8
262203ELF-9X5.092.55.4
262204ELF-15X9.0152.510
262205ELF-22X15222.510.2
262206ELF-30X22302.511
262207ELF-40X30402.514
262208ELF-50X40502.514.5
262209ELF-60X50602.517.1
262210ELF-70X60702.518
