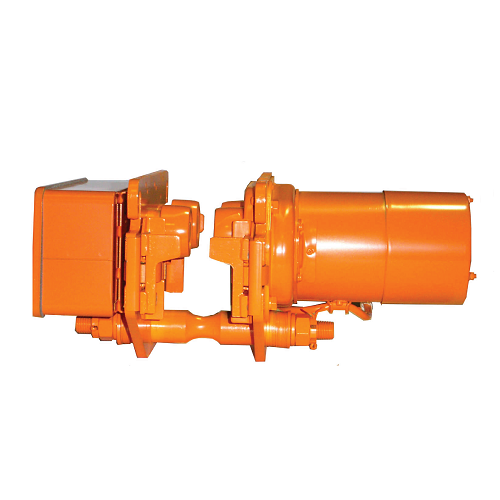

Hitachi Electric Trolley

Hitachi Electric trolleys are fitted with Guide Rollers as standard to reduce wear and ensure suitability for curved beam applications


  • This can be combined with a 4-point or 6-point pushbutton and used as a motorized trolley or overhead traveling crane.
  • The electric chain hoist with chain driven trolley is suitable for relatively heavy loads not transported a long distance.
  • The electric chain hoist with manual driven trolley is suitable for relatively light loads transported a short distance.


Download coming soon
Product manual coming soon

Part No.Model Name

WLL

(t)

Travelling Speed

50Hz~60Hz

(m/min)

Motor Output

50Hz~60Hz

(kW)

Beam Width

(mm)

Rating

(ED)

HET1001ET110.5(21)~12.5(25)0.14(0.27)~0.16(0.32)75-12525%
HET2002ET210.5(21)~12.5(25)0.14(0.27)~0.16(0.32)100-15025%
HET3003ET310.5(21)~12.5(25)0.3(0.6)~0.35(0.7)100-15025%
HET5005ET510.5(21)~12.5(25)0.3(0.6)~0.35(0.7)125-17525%
