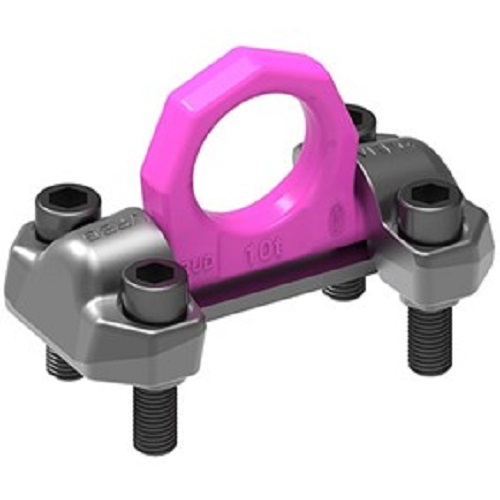

VRBG 10 and 16 – Load Ring for Bolting

The VRBG has part-protecting application of force through several fixtures.


  • The patented relief lugs protect the securing bolt against bending and sharing loads
  • Stowable with smaller bolts and thus low profile
  • Working Load Limit up to 16t


Download product brochure
Product manual coming soon

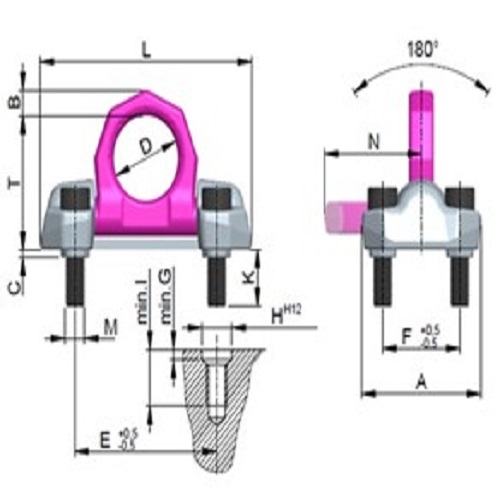

Part No.WLL (tonnes)T
(mm)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
G
(mm)
H
(mm)
I
(mm)
K
(mm)
L
(mm)
M
(mm)
N
(mm)
Weight
(kg)
799453710t10312522665143788305043213201005.43
799325516t13117030890198104104670632703013411.37
