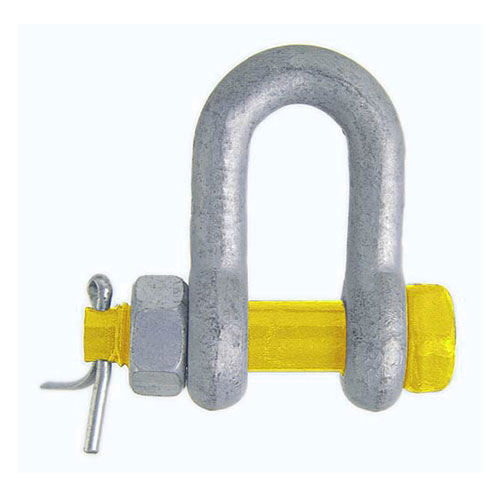

Grade S Safety Pin Dee Shackle

Category:

Grade S safety pin dee shackles are ideal for applications involving lifting, moving and securing loads.


  • Fitted with bolt, nut and safety split pin.
  • Galvanised finish with yellow painted pin.
  • Complies with Australian Standard: AS 2741.


Download coming soon

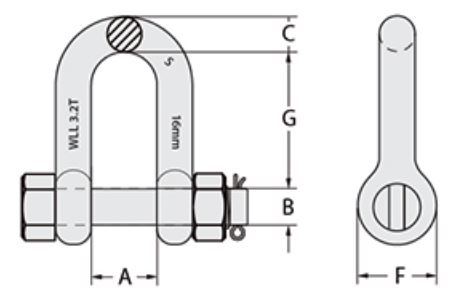

Part No.WLL
(tonnes)
A
(mm)
B
(mm)
C
(mm)
F
(mm)
G
(mm)
Weight
(kg)
147005221161333410.36
1470063.227191640510.76
1470074.732221948601.23
1470086.537252254711.79
1470098.543292560812.78
1470109.546322967903.76
14701112523532761005.31
14701213.5573835841136.98
14701317604438921249.44
1470142573514411014614.1
1470153583575112717123.71
14701642.595635714318129.01
14701755105706315220340.86
