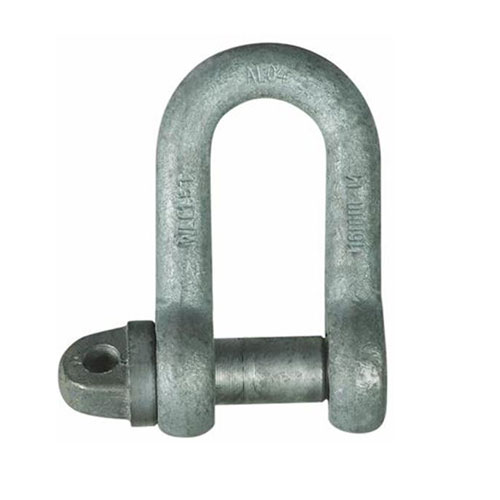

Grade M Screw Pin Dee Shackle

Category:

Grade M dee shackles are used where larger dimensional shackles are required for specific applications and are ideal for the marine, agricultural & general industrial uses.


  • Screw collar pin formation.
  • Hot dipped galvanised finish.
  • Complies with Australian Standard: AS 2741.


Download coming soon

Part No.WLL
(tonnes)
B
(mm)
C
(mm)
D
(mm)
D1
(mm)
F
(mm)
Weight
(kg)
1440010.251325610190.062
1440020.519381013250.164
1440030.75285413163203353
1440041.532631619380.66
144005238731922441.13
144006344832225511.53
1440073.851952529572.16
1440085541052932633.07
1440096601143235704.2
1440107671273538765.83
1440119.5701373844897.8
1440121383156445110213
1440131698187515711430.2
