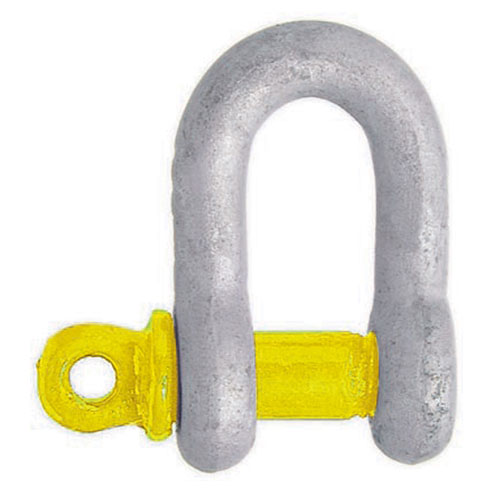

Grade S Screw Pin Dee Shackle

Category:

Grade S screw pin dee shackles represent an easy and effective way of providing a connection of chain, wire rope or other rigging equipment.


  • Screw collar pin formation.
  • Galvanised finish with yellow painted pin.
  • Complies with Australian Standard: AS 2741.


Download coming soon

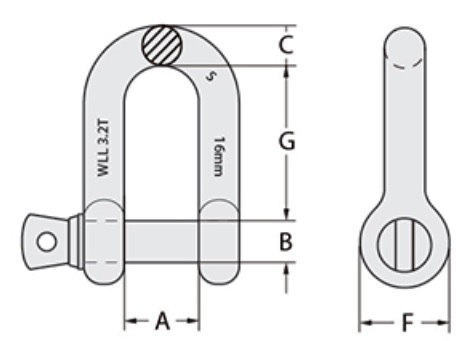

Part No.WLL
(tonnes)
A
(mm)
B
(mm)
C
(mm)
F
(mm)
G
(mm)
Weight
(kg)
1430010.5128617220.05
1430020.751310821260.09
143003117111025320.14
1430041.518131127370.17
143005221161333410.29
1430063.227191640510.63
1430074.732221948601.02
1430086.537252254711.53
1430098.543292560812.41
1430109.546322967903.09
14301112523532761004.31
14301213.5573835841136.01
14301317604438921248.03
1430142573514411014611.48
1430153583575112717120.42
14301642.595635714318126.06
14301755105706315220338.8
