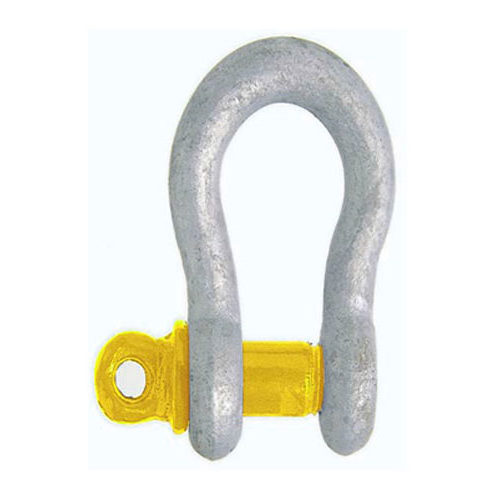

Grade S Screw Pin Bow Shackle

Category:

Grade S screw pin bow shackles represent an easy and effective way of providing a connection of chain, wire rope or other rigging equipment.


  • Screw collar pin formation.
  • Galvanised finish with yellow painted pin.
  • Complies with Australian Standard: AS 2741.


Download product brochure

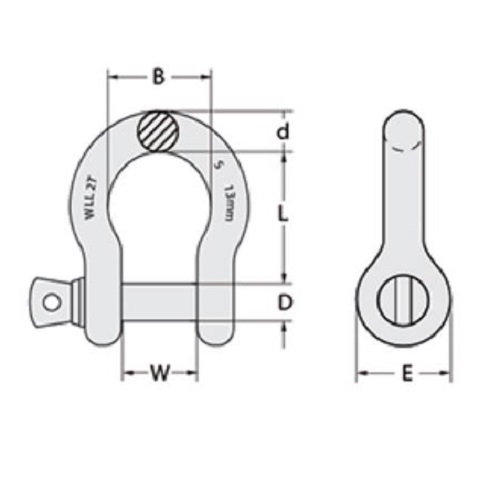

Part No.WLL
(tonnes)
d
(mm)
D
(mm)
W
(mm)
L
(mm)
B
(mm)
E
(mm)
Weight
(kg)
1410010.3356102214140.33
1410020.568122917170.05
1410030.75810133121210.09
14100411011173725250.14
1410051.51113184327270.2
14100621316214833330.31
1410073.21619276140400.6
1410084.71922327248481
1410096.52225378454541.6
1410108.52529439560602.3
1410119.529324610867673.2
1410121232355211976764.4
14101313.535385713384845.8
1410141738416014692927.7
1410152544517317811011013
1410163551578319714612720.42
14101742.557639522216014326.06
14101855637010526718415238.8
