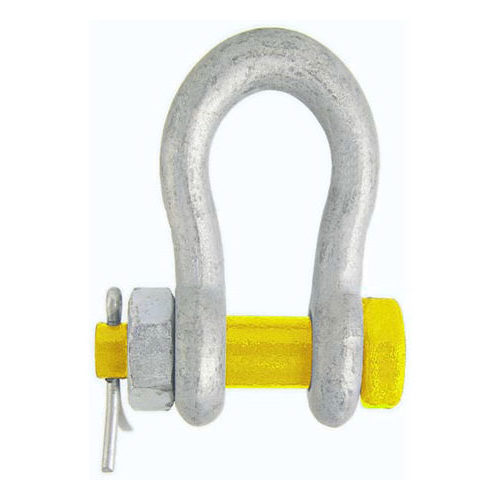

Grade S Safety Pin Bow Shackle

Category:

Grade S safety pin bow shackles are ideal for applications involving lifting, moving and securing loads. Commonly used in suspension, tension and permanent applications.


  • Fitted with bolt, nut and safety split pin.
  • Galvanised finish with yellow painted pin.
  • Complies with Australian Standard: AS 2741.


Download product brochure

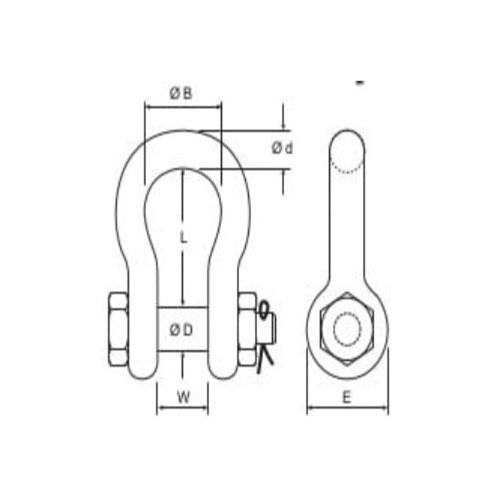

Part No. WLL (tonnes) d (mm) D (mm) W (mm) L (mm) B (mm) E (mm) Weight (kg)
142001 0.33 5 6 10 22 14 14 0.33
142002 0.5 6 8 12 29 17 17 0.05
142003 0.75 8 10 13 31 21 21 0.09
142004 1 10 11 17 37 25 25 0.14
142005 1.5 11 13 18 43 27 27 0.2
142006 2 13 16 21 48 33 33 0.31
142007 3.2 16 19 27 61 40 40 0.6
142008 4.7 19 22 32 72 48 48 1
142009 6.5 22 25 37 84 54 54 1.6
142010 8.5 25 29 43 95 60 60 2.3
142011 9.5 29 32 46 108 67 67 3.2
142012 12 32 35 52 119 76 76 4.4
142013 13.5 35 38 57 133 84 84 5.8
142014 17 38 41 60 146 92 92 7.7
142015 25 44 51 73 178 110 110 13
