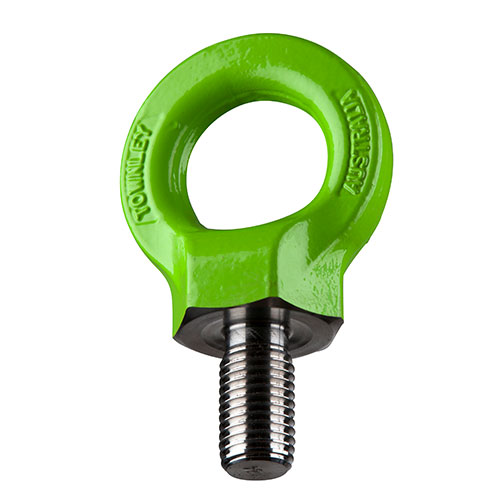

Eyebolt (G8)

Grade 8 eyebolts offer up to 4 times higher lifting capacity in certain applications. The larger internal eye diameter offers a versatile alternative to standard Grade 4 eyebolts.


  • Manufactured exclusively from Australian Made Steel
  • Electromagnetic crack testing to AS 1171
  • Long shanks and special thread forms made to order


Product brochure coming soon
Product manual coming soon

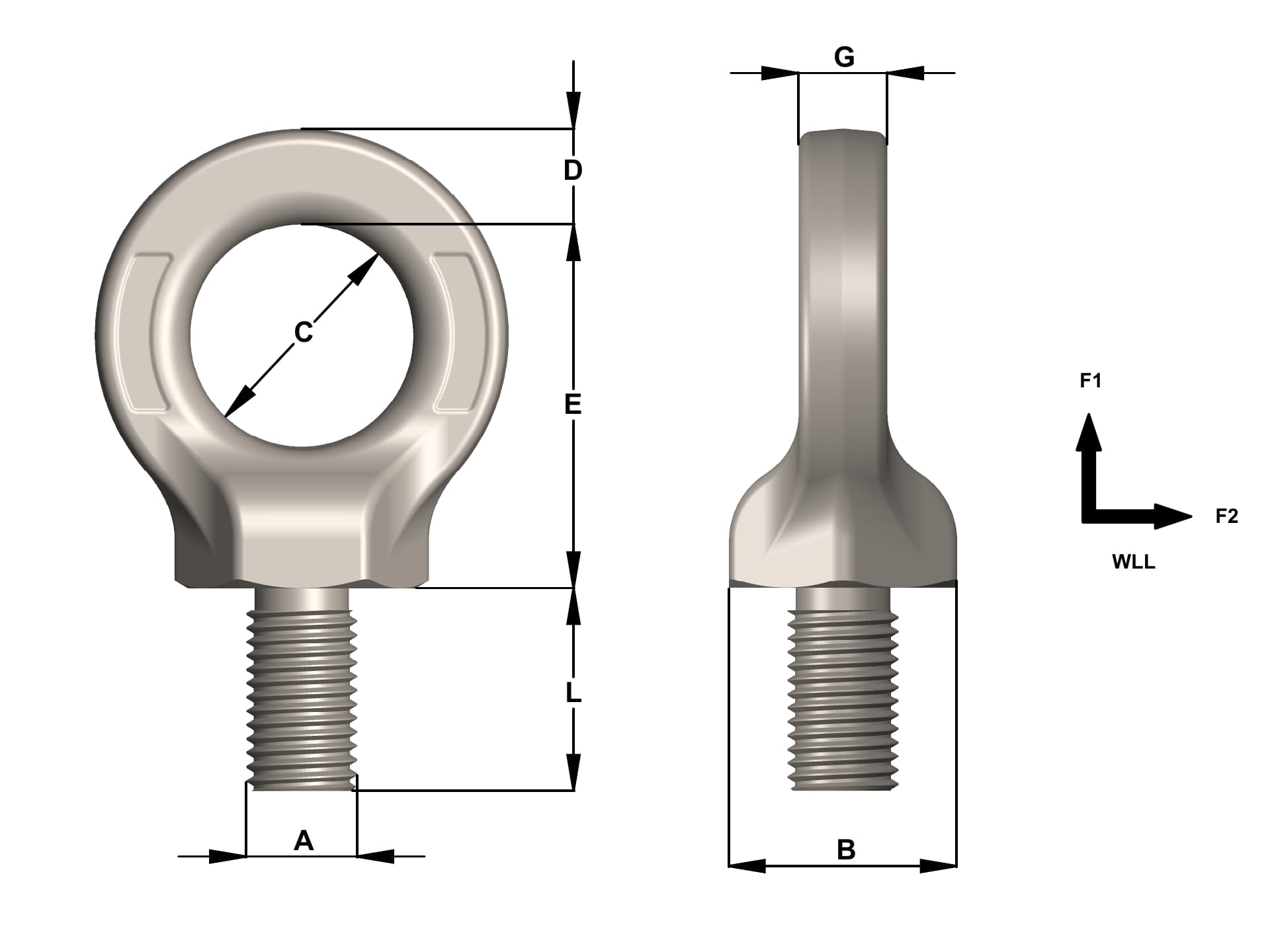

Part No.Size
(mm)
TypeWLL F1
(tonnes)
WLL F2
(tonnes)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
G
(mm)
L
(mm)
Weight
(kg)
1511018Metric Course0.80.22730124810210.17
15110210Metric Course10.252730124810210.17
15110312Metric Course1.60.42730124810210.17
15110416Metric Course413434155614280.37
15110520Metric Course61.64140177016350.6
15110624Metric Course82.55050208518421.1
15110727Metric Course82.55050208518421.1
15110830Metric Course12360602610526522.6
15110933Metric Course12372723412032583.7
15111036Metric Course16472723412032633.7
