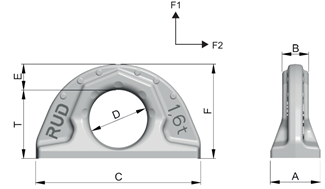

Part No. | WLL (tonnes) | A (tonnes) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | T (mm) | Weight (kg) |
---|---|---|---|---|---|---|---|---|---|
161401 | 0.8t | 22 | 12 | 70 | 32 | 12 | 50 | 32 | 0.2 |
161402 | 1.6t | 30 | 16 | 100 | 35 | 16 | 57 | 42 | 0.45 |
161403 | 3.2t | 41 | 23 | 137 | 50 | 21 | 80 | 59 | 1.15 |
161404 | 5.0t | 51 | 27 | 172 | 60 | 28 | 99 | 72 | 2.26 |
161405 | 10t | 70 | 38 | 228 | 80 | 35 | 130 | 95 | 5.37 |
161406 | 20t | 90 | 52 | 272 | 115 | 40 | 175 | 135 | 10.72 |
161407 | 31.5t | 108 | 64 | 320 | 130 | 50 | 204 | 154 | 18.33 |

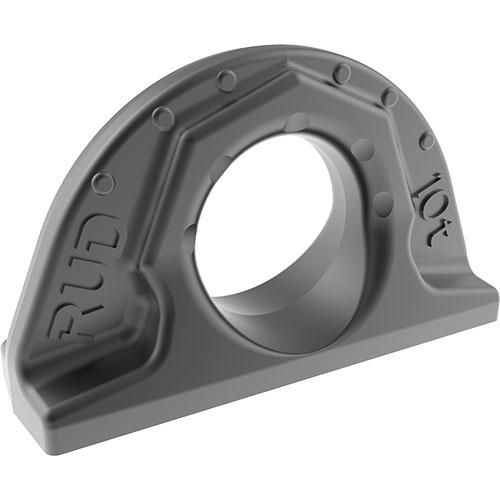

ABA Weld On Lug
The RUD ABA Lifting Point has a safety rating of 4:1 and can be used in temperatures that range from -40˚C up
- 100% Electro-magnetic crack detection tested
- Clear marking of the WLL
