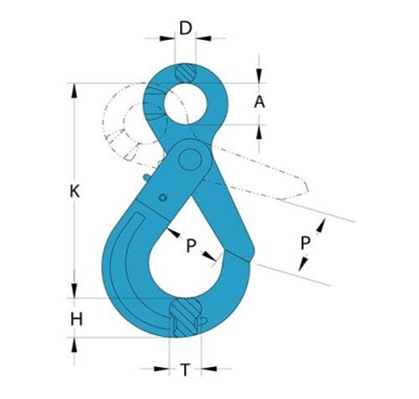

| Part No. | Chain Size (mm) | WLL (t) | A (mm) | P (mm) | D (mm) | K (mm) | T (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 1343006 | 6 | 1.4 | 21 | 28 | 10 | 110 | 15 | 19 | 0.5 |
| 1343008 | 8 | 2.5 | 25 | 34 | 11 | 136 | 20 | 24 | 0.8 |
| 1343010 | 10 | 4 | 35 | 44 | 13 | 167 | 26 | 30 | 1.5 |
| 1343013 | 13 | 6.7 | 40 | 51 | 16 | 207 | 30 | 39 | 3.0 |
| 1343016 | 16 | 10 | 50 | 60 | 21 | 252 | 36 | 49 | 5.8 |
| 1343020 | 20 | 16 | 60 | 70 | 23 | 290 | 53 | 65 | 10.2 |
| 1343022 | 22 | 19 | 70 | 80 | 24 | 319 | 49 | 63 | 12.7 |
| 1343026 | 26 | 26.5 | 80 | 99 | 25 | 343 | 56 | 69 | 15.2 |
