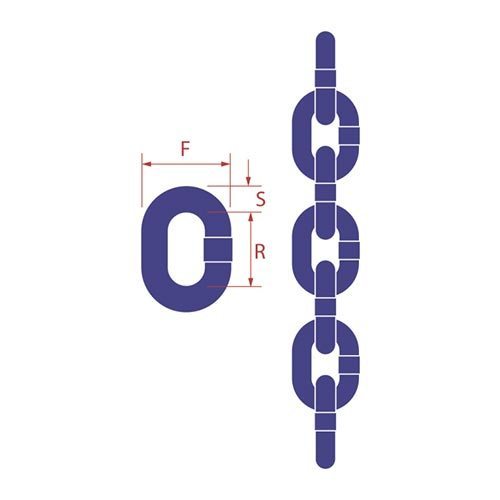

| Part No. | Chain Size (mm) | WLL (t) | S (mm) | R (mm) | F (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 194008 | 8 | 2.5 | 8 | 24 | 29.6 | 1.5 |
| 194010 | 10 | 4 | 10 | 30 | 37 | 2.3 |
| 194013 | 13 | 6.7 | 13 | 39 | 48.1 | 4 |
| 194016 | 16 | 10 | 16 | 48 | 59.2 | 6 |
| 194020 | 20 | 16 | 20 | 60 | 74 | 8.9 |
| 194022 | 22 | 19 | 22 | 66 | 81.4 | 11.4 |
| 194026 | 26 | 26.5 | 26 | 78 | 96.2 | 16 |
| 194032 | 32 | 40 | 32 | 96 | 115 | 24.1 |

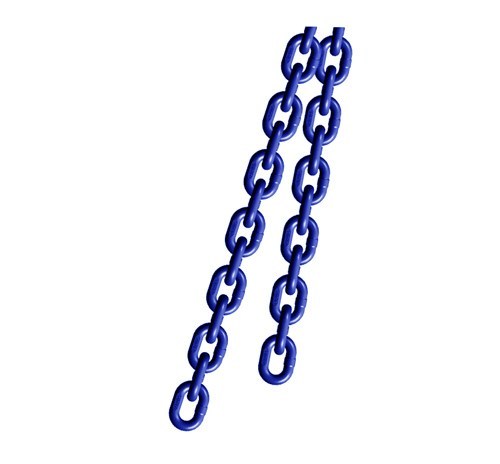

Chain (G100)
Grade 100 chain is manufactured from hardened and tempered steel. Key benefit of an increase in WLL by 20% over G80 assemblies.
- Available by the metre or in bulk drum lengths.
- Traditional design in a blue painted finish.
- Complies with Australian Standard AS 2321.
