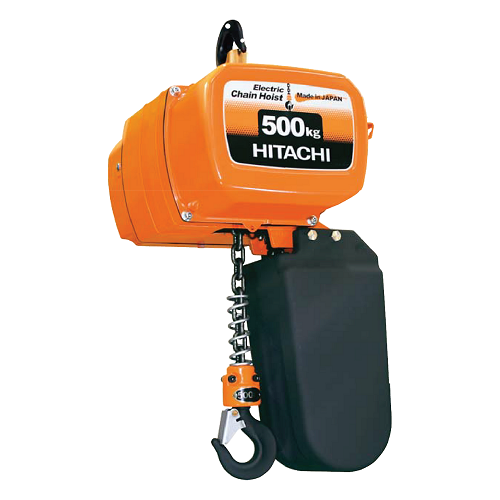

Hitachi Electric Hoist L-Series

Hitachi’s reputation for excellence in design, quality, reliability and performance has made this brand a global market leader. With over three decades of proven reliability throughout Australasia and an extensive operating range, Hitachi Electric Chain Hoists are suited to most applications. The Hitachi L-Series model is available in the 250kg capacity three phase, single speed while being tested to the Australian standards AS1418.2.


  • Significant improvement to the duty cycle which extends operation time.
  • Operation: fully contactorised with high rated contactors and pendant controls; both fitted with mechanical interlocks and 24V control. Optional IP65 pendant including E-Stop available.
  • Braking: all models are fitted with an electro-magnetic, self-adjusting disc type brake to the gearbox.


Download coming soon
Product manual coming soon

Part No.ModelModel Name

Rated Load Capacity

(kg)

Lift

(mtrs)

Hoisting Speed

(m/min)

50Hz~60Hz

Approx.

Weight

Load Chain
Dia. x Pitch (mm)
HEH010LSingle Speed1/2L50037.2~8.5326.3×19.1
POASingle Speed1/2LH50067.2~8.5356.3×19.1
HEH060LDual Speed1/2LN50037.2/1.2~8.5/2.1356.3×19.1
POADual Speed1/2LNH50067.2/1.2~8.5/2.1386.3×19.1
HEH907LSingle Phase1/2LS50033.6~4.3346.3×19.1
POASingle Phase1/2LSH50063.6~4.3376.3×19.1
