Electric Chain Hoist KITO ER2 Single Speed Series

Categories: , ,

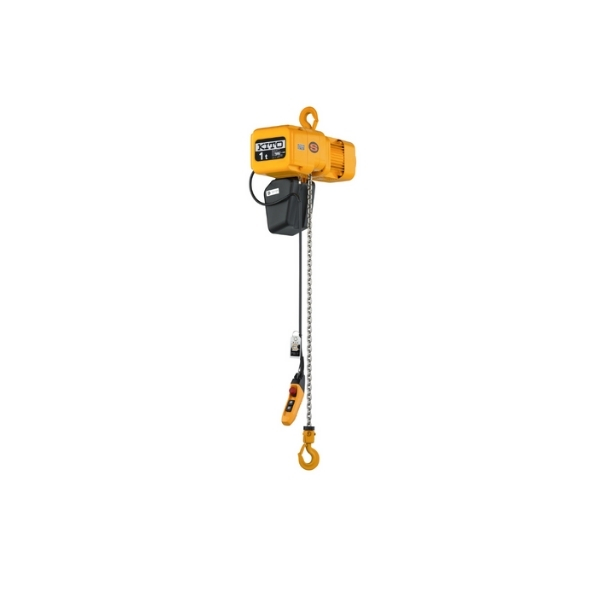

Electric chain hoist with hook suspension.

Kito Certex

The KITO ER2 Electric Chain Hoists are durable, safe and easy to use hoists. It has a top hook or overhead mounting suspension, aluminium die-cast body, electromagnetic brake and a canvas chain container. It lifts from 125 kg up to 5 tons.

Kito Certex


Standard configuration:

  • 400 V/50 Hz
  • Contactor control for single speed
  • CH-Meter: operating hours /number of starts
  • Ergonomic push button control
  • Upper-lower limit switch
  • Nickel-plated load chain class grade 80 (DAT) in accordance with Norm EN 818-7
  • Thermal protector
  • Carbon friction clutch

Options:

  • 500 V/Contactor control
  • 230 V/50 Hz/60 Hz, 3 phase
  • Rubber bumpers for motorized trolleys
  • Additional mechanical brake
  • Electrical overload limiter
  • Acoustic overload signal
  • Radio remote control
  • Variable speed control
  • Level limit switch
  • Steel chain container
  • Trolley versions: motorized, geared and plain
  • Note: ER2 Large Capacity Single Speed Series also available

Australian Standard: AS 1418.2



Product manual coming soon

Variants
Part Code Code WLL
ton		 Lifting height
m		 Lifting speed
m/min		 Number of falls Motor
kW
540101251840064 ER2-001H 0.125 3 14.1 1 0.56
540100031850064 ER2-003S 0.25 3 9.1 1 0.56
540100031860064 ER2-003H 0.25 3 13.4 1 0.56
540100051220064 ER2-005L 0.5 3 3.8 1 0.9
540100051870064 ER2-005S 0.5 3 7.3 1 0.56
540100101880064 ER2-010L 1 3 3.5 1 0.9
540100101890064 ER2-010S 1 3 7.1 1 0.9
540100161270064 ER2-016S 1.6 3 4.5 1 1.8
540100201800064 ER2-020L 2 3 3.7 1 1.8
540100201410064 ER2-020S 2 3 7 1 3.5
540100251910064 ER2-025S 2.5 3 5.7 1 3.5
540100322920064 ER2-032S 3.2 3 4.4 2 3.5
540100502810064 ER2-050S 5 3 2.9 2 3.5
Dimensions
WLL
tons		 Produkt
code		 Min. headroom C
mm		 D
mm		 a
mm		 b
mm		 d
mm		 e
mm		 f
mm		 g
mm		 h
mm		 i
mm
0.125ER2-001H350430478321219259260279993
0.250ER2-003S350430478321219259260279993
0.250ER2-003H37049051034824226828327113106
0.500ER2-005L37049051334824227128327113106
0.500ER2-005S37049051034824226828327113106
1ER2-010L43055058937629129833531129118
1ER2-010S43055059837629130733531129118
1.6ER2-016S510630646427308338384.534160.5137.5
2ER2-020L575630646427308338384.539160.5137.5
2ER2-020S590630703427347356384.539160.5137.5
2.5ER2-025S625840736445337399437.539173.5142.5
3.2ER2-032S7859207034273473563974421682
5ER2-050S85092073644533739943947231.584.5
