Jaw/Jaw Grade P Rigging Screw

Generally used for straight or in line tensioning in conjunction with wire rope and or chain assemblies when heavy duty straining and lifting applications are required.


  • Manufactured from Grade P high tensile material quenched and tempered hot dipped galvanised finish suitable for outdoor use available in metric sizing and jaw end fittings with lock nuts.
  • Meets the design requirements of AS2319 Proof tested to 2 x WLL and minimum break force is 6 x WLL.
  • Individual proof tested.


Download coming soon

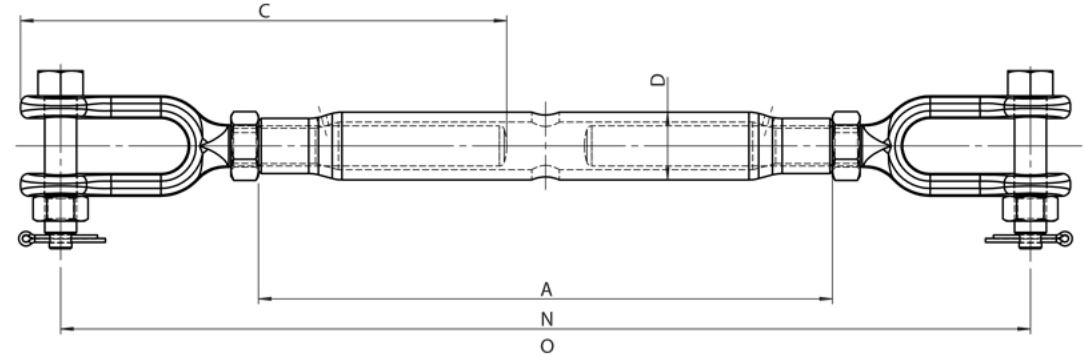

Part No.Size
(mm)
WLL
(tonne)
A
(mm)
C
(mm)
D
(mm)
N
(mm)
O
(mm)
Weight
(kg)
524210100.6152124212353450.48
524212121229183253505250.98
524216161.6229194273905301.4
524220202.5229204344055402.3
524224244356292425658204.85
524227275256294455908055.75
524233338381320576408700.08
524239391040735663.570096013.5
52424545124073787075597518.6
52424848164074047679097523
