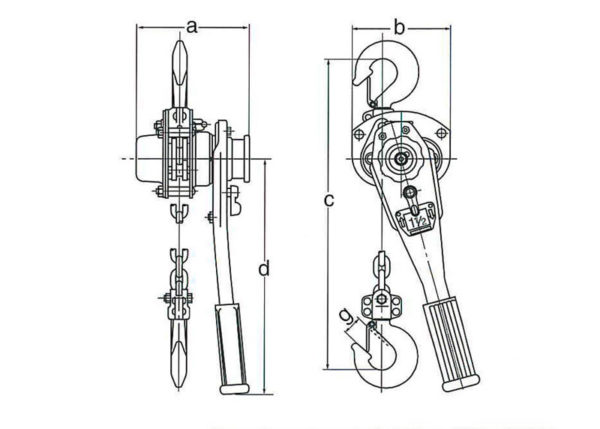

| Part No. | WLL (tonnes) | HOL (mtr) | A (mm) | B (mm) | C (mm) | D (mm) | G (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 272001 | 0.8 | 3 | 148 | 128 | 295 | 260 | 27 | 6.9 |
| 272002 | 1.6 | 3 | 163 | 148 | 355 | 370 | 34 | 9.7 |
| 272003 | 3.2 | 3 | 191 | 181 | 405 | 370 | 43 | 16.3 |
| 272004 | 6.3 | 3 | 191 | 244 | 550 | 370 | 47 | 26.7 |

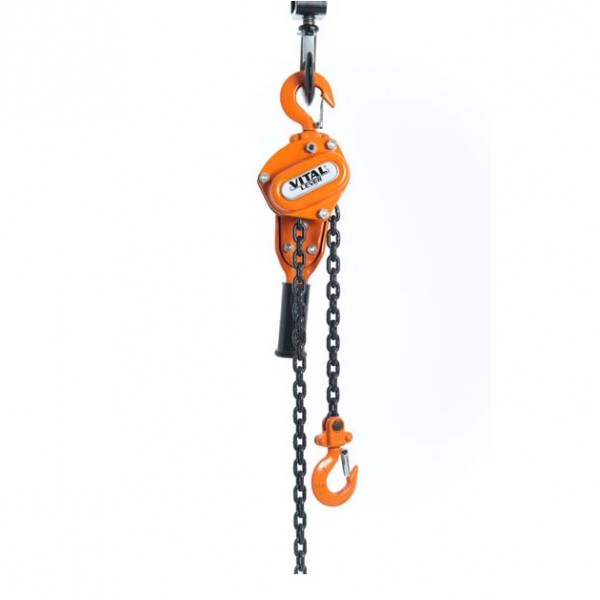

Vital VR Lever Block
Vital is globally recognised for their high quality products. Capacities vary from 0.8 tonne to 6.3 tonne and all lever blocks can be supplied with overload protection for added security of use.
- Load chain exceeds Australian Standards with 5:1 Safety Factor.
- Easy two-step operation to prevent accidental free-wheeling.
- Complies with Australian Standard: AS 1418.2.
