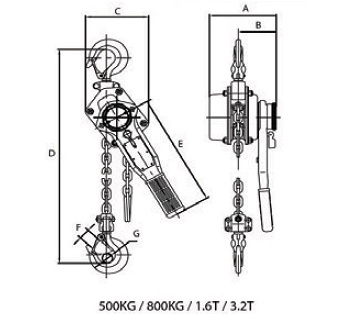

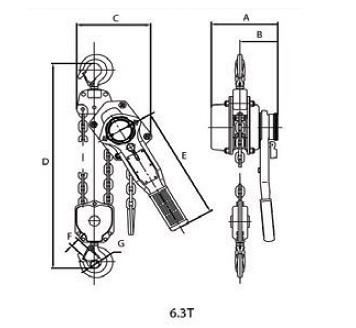

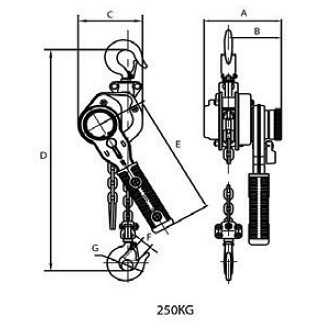

Part No. | WLL (tonnes) | HOL (mtr) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight (kg) |
---|---|---|---|---|---|---|---|---|---|---|
275001 | 0.25 | 1.5 | 100 | 70 | 86 | 235 | 168 | 20 | 18 | 2.4 |
275002 | 0.5 | 1.5 | 143 | 85 | 118 | 310 | 253 | 22 | 20 | 3.7 |
275003 | 0.8 | 1.5 | 147 | 87 | 132 | 340 | 273 | 26 | 25 | 7 |
275004 | 1.6 | 1.5 | 173 | 99 | 145 | 400 | 378 | 29 | 30 | 10 |
275005 | 3.2 | 1.5 | 200 | 112 | 198 | 520 | 418 | 37 | 36 | 20 |
275006 | 6.3 | 1.5 | 200 | 112 | 230 | 640 | 418 | 43 | 43 | 31 |

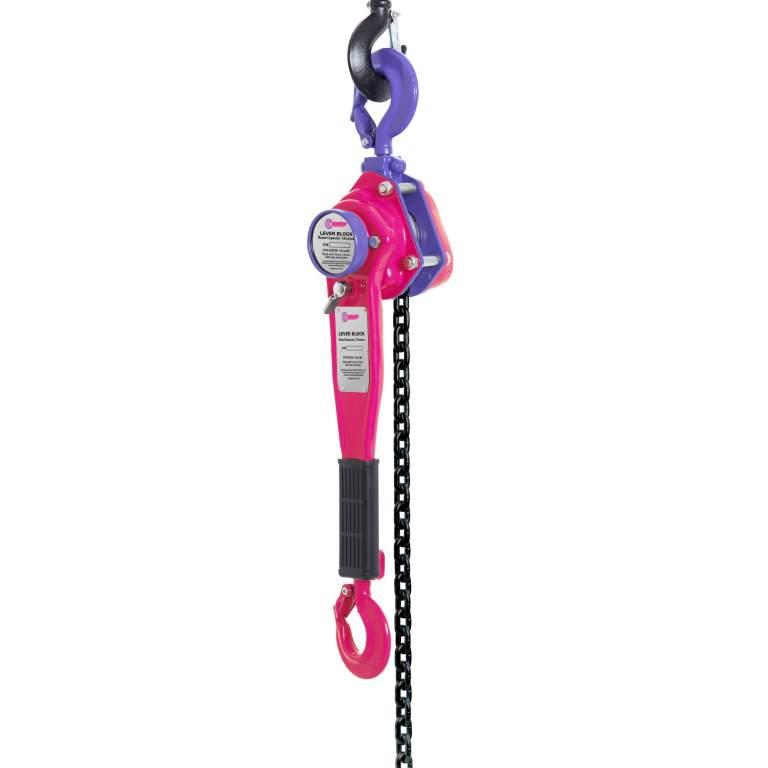

Challenger Lever Block
Challenger Lever Blocks feature better quality in a new compact design. Suitable for many applications in the mining, construction, industrial and automotive industry. These chain blocks have it all; better quality, easy to use and improved safety.
- Key internal components are CNC machined before being heat-treated and toughened.
- Complies with Australian Standard: AS 1418.2.
