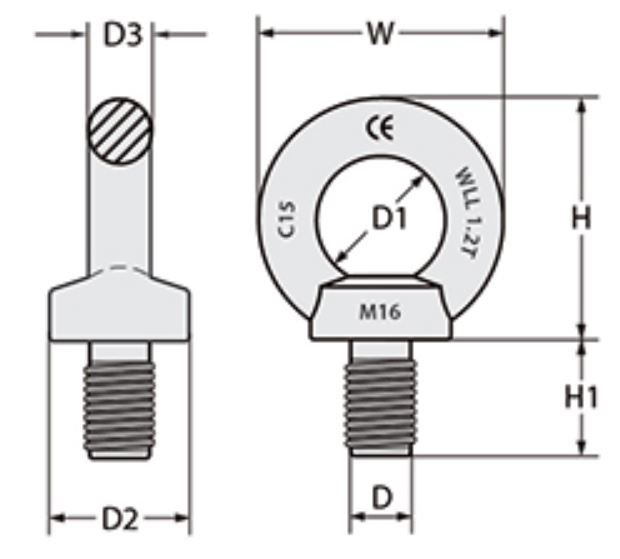

| Part No. | Size (mm) | WLL Axial (tonnes) | WLL Side 90 (tonnes) | D (mm) | D1 (mm) | D2 (mm) | D3 (mm) | H (mm) | H1 (mm) | W (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 151001 | 6 | 0.09 | 0.018 | 6 | 20 | 20 | 8 | 36 | 13 | 36 | 0.055 |
| 151002 | 8 | 0.14 | 0.035 | 8 | 20 | 20 | 8 | 36 | 13 | 36 | 0.06 |
| 151003 | 10 | 0.23 | 0.058 | 10 | 25 | 25 | 10 | 45 | 17 | 45 | 0.1 |
| 151004 | 12 | 0.34 | 0.085 | 12 | 30 | 30 | 12 | 53 | 20 | 54 | 0.19 |
| 151005 | 16 | 0.7 | 0.175 | 16 | 35 | 35 | 14 | 62 | 27 | 63 | 0.31 |
| 151006 | 20 | 1.2 | 0.3 | 20 | 40 | 40 | 16 | 71 | 30 | 72 | 0.45 |
| 151007 | 22 | 1.5 | 0.375 | 22 | 40 | 40 | 16 | 71 | 30 | 72 | 0.68 |
| 151008 | 24 | 1.8 | 0.45 | 24 | 50 | 50 | 20 | 90 | 36 | 90 | 0.72 |
| 151009 | 27 | 2.5 | 0.625 | 27 | 54 | 61.4 | 22 | 99 | 40 | 98 | 1.16 |
| 151010 | 30 | 3.6 | 0.9 | 30 | 60 | 65 | 24 | 109 | 45 | 108 | 1.6 |
| 151011 | 36 | 5.1 | 1.275 | 36 | 70 | 75 | 28 | 128 | 54 | 126 | 2.8 |
| 151012 | 42 | 7 | 1.75 | 42 | 80 | 85 | 32 | 147 | 63 | 144 | 4.2 |
| 151013 | 48 | 8.6 | 2.15 | 48 | 90 | 100 | 38 | 168 | 68 | 166 | 6.36 |
| 151014 | 56 | 11.5 | 2.875 | 56 | 100 | 110 | 42 | 187 | 78 | 184 | 11.5 |
Eyebolt DIN

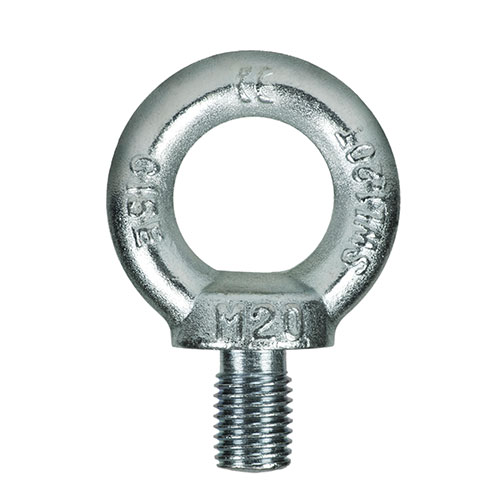

Eye bolts DIN580 are for generally use applications.
- Made from C15 carbon steel with zinc plated finish, manufactured with a standard larger eye.
- Conforms to DIN580 and DIN582.
- Test certificates are available upon request.
