Longshank Eyebolt (G4)

Categories: ,

Each eyebolt is made to order at the requested length and clearly stamped with the permitted F2 WLL. F2 WLL – indicates safe use for non-axial lifts. F1 WLL – indicates loads which are in line with the axis of the threaded end of the eyebolt.


  • Complies to AS 2317
  • 6:1 Safety Factor
  • Manufactured using only heat certified Australian Steel


Product brochure coming soon
Product manual coming soon

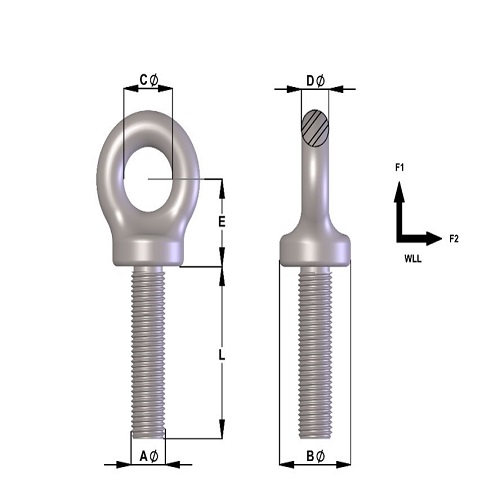

Part No. Size (mm) Type WLL (tonnes) Thread Pitch B (mm) C (mm) D (mm) E (mm) L (mm)
EBLSM10 M10 Metric Course 0.25 1.5 28 24 14 29 As Required
EBLSM12 M12  Metric Course 0.4 1.75 28 24 14 29  As Required
EBLSM16 M16  Metric Course 0.8 2 35 28 16 38  As Required
EBLSM20 M20  Metric Course 1.6 2.5 44 32 20 44  As Required
EBLSM22 M22  Metric Course 2 2.5 50 33 20 44  As Required
EBLSM24 M24  Metric Course 2.5 3 57 38 22 51  As Required
EBLSM27 M27  Metric Course 2.5 3 71 48 28 65  As Required
EBLSM30 M30  Metric Course 4 3.5 71 48 28 65  As Required
EBLSM33 M33  Metric Course 5 3.5 71 48 28 65  As Required
EBLSM36 M36  Metric Course 6.3 4 86 55 33 73  As Required
EBLSM39 M39  Metric Course 7 4 86 55 33 73  As Required
EBLSM42 M42  Metric Course 8 4.5 102 66 40 90  As Required
EBLSM48 M48  Metric Course 10 5 115 72 49 99  As Required
EBLSM56 M56  Metric Course 15 5.5 143 95 56 124  As Required
EBLSM64 M64  Metric Course 20 6 143 95 56 124  As Required
EBLSM72 M72  Metric Course 25 6 163 106 66 140  As Required
EBLSM76 M76  Metric Course 30 6 163 106 66 140  As Required
