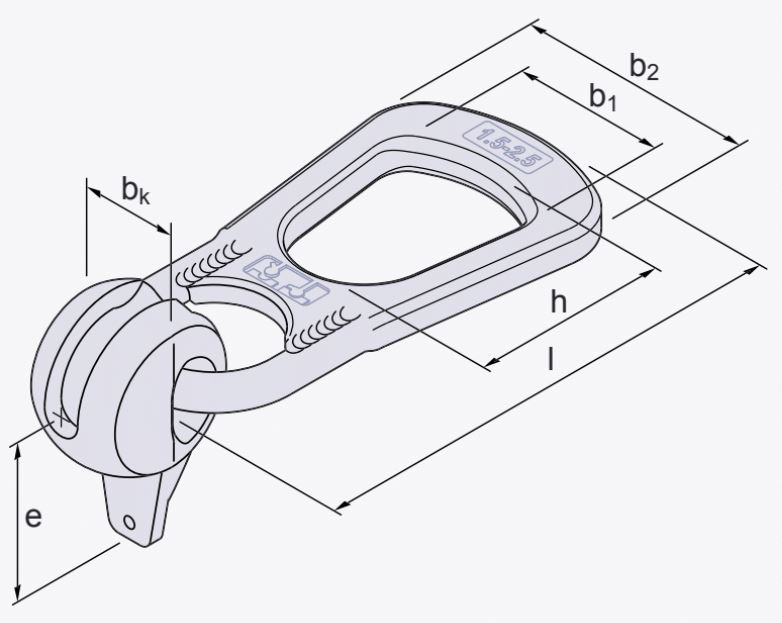

| Part No. | WLL (t) | b1 (mm) | b2 (mm) | h (mm) | e (mm) | bk (mm) | I (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 295201 | 1.3 | 46 | 78 | 70 | 53 | 33 | 158 | 0.9 |
| 295202 | 2.5 | 66 | 100 | 86 | 68 | 43 | 197 | 1.6 |
| 295203 | 5 | 72 | 125 | 88 | 95 | 56 | 240 | 3.4 |
| 295204 | 10 | 89 | 170 | 115 | 120 | 77 | 340 | 9.5 |
Phillip Concrete Lifting Clutch
The Phillip spherical head lifting clutch is made of a resistant cast steel as well as forged steel. Its included claw supports an easy (un)coupling to anchor heads of the Spherical head anchor systems. The Spherical head lifting clutch surface is completely electro-galvanised.
- Proof tested, supplied with a test certificate and stamped with a unique trackable serial number.
- Full range of Clutches up to 32 tonne.
- Clutches are electroplated to increase longevity.
