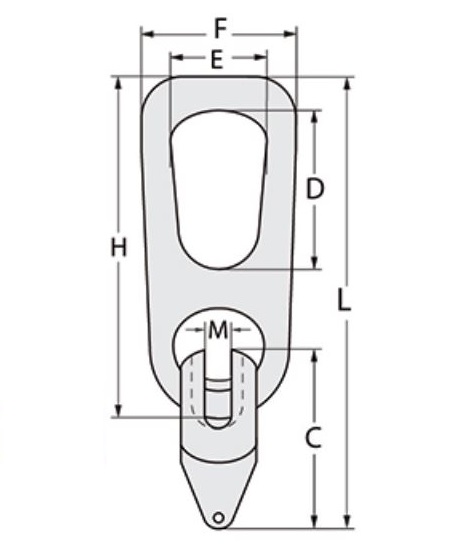

| Part No. | WLL (tonnes) | C (mm) | D (mm) | E (mm) | F (mm) | H (mm) | L (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 295103 | 1.33 | 80.4 | 70.5 | 45 | 73 | 157 | 181 | 1 |
| 295104 | 2.5 | 99 | 85 | 57 | 88 | 190 | 220 | 1.5 |
| 295105 | 5 | 133 | 88 | 69 | 110 | 233 | 271 | 3.3 |
| 295106 | 10 | 176 | 116 | 83 | 161 | 336.5 | 386 | 10 |

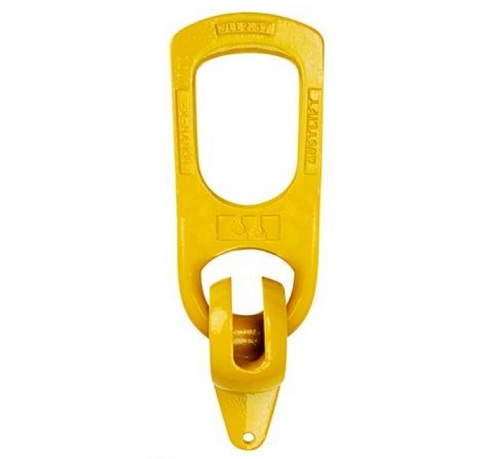

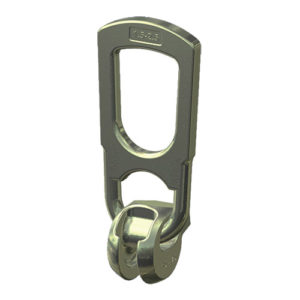

Concrete Lifting Clutch
Panel lifters are a versatile lifting product for lifting pre-cast concrete products such as construction panels, pipes, columns etc.
- Marked with the working load limit, serial number and branded.
- Batch tested, test certificates available with each unit.
- Painted yellow.
