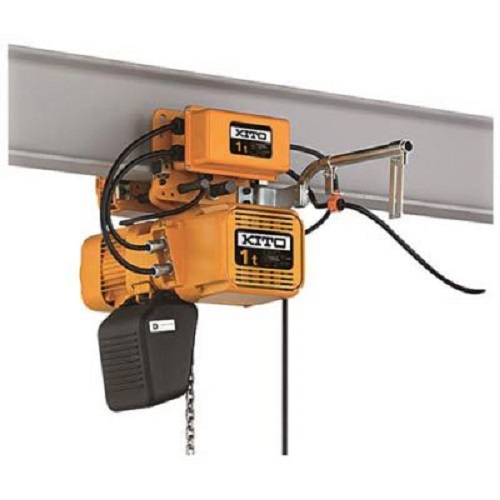

MR2 Motorised Trolley

Bearing built-in side rollers provide smooth running through the minimum radius curve and excellent traversing performance with preventive derailment.


  • Available in single and dual speed
  • Available with standard and wide flange width


Download coming soon
Product manual coming soon

Single Speed Standard Flange Width

Part No.Model

Capacity

(t)

Traverse Speed

(m/min)

Beam Range

(mm)

Minimum Radius

(mtr)

45901MR2-010S12058-153 Fig0.8
45902MR2-020S22082-178 Fig0.8
45903 MR2-030S32082-178 Fig1.0
45904 MR2-050S520100-178 Fig1.8

Dual Speed Standard Flange Width

Part No.Model

Capacity

(t)

Traverse Speed

(m/min)

Beam Range

(mm)

Minimum Radius

(mtr)

45921MR2-010IS124/458-153 Fig0.8
45922 MR2-020IS224/482-178 Fig0.8
45924 MR2-030IS324/482-178 Fig1.0
45925 MR2-050IS524/4100-178 Fig1.8

Single Speed Wide Flange

Part No.Model

Capacity

(t)

Traverse Speed

(m/min)

Beam Range

(mm)

Minimum Radius

(mtr)

45911MR2-010SW120154-305 Fig0.8
45912MR2-020SW220179-305 Fig0.8
45913 MR2-030SW320179-305 Fig1.0
45914 MR2-050SW520179-305 Fig1.8

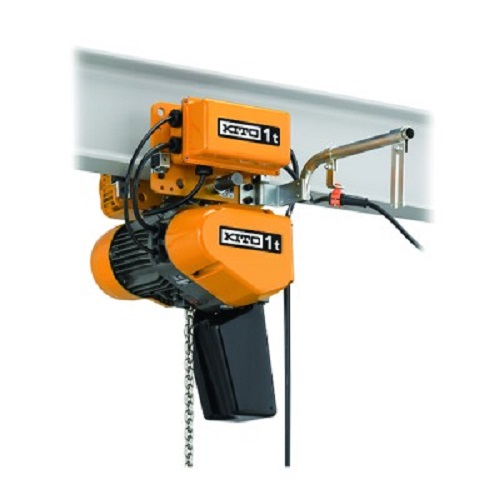

Dual Speed Wide Flange

Part No.Model

Capacity

(t)

Traverse Speed

(m/min)

Beam Range

(mm)

Minimum Radius

(mtr)

45931MR2-010ISW124/4154-305 Fig0.8
45932MR2-020ISW224/4179-305 Fig0.8
45933 MR2-030ISW324/4179-305 Fig1.0
45935 MR2-050ISW524/4179-305 Fig1.8
