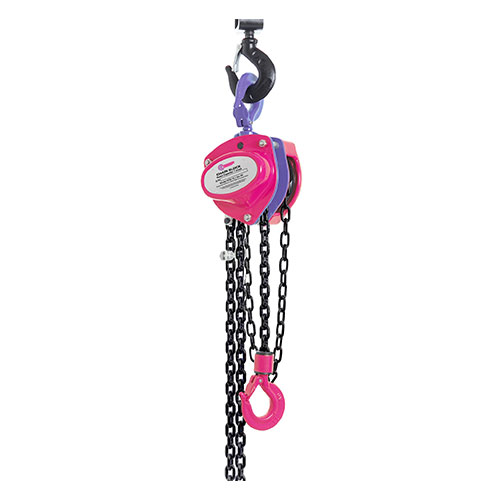

Challenger Chain Block

Category:

Challenger Chain Blocks feature better quality in a new compact design. Suitable for many applications in the mining, construction, industrial and automotive industry. These chain blocks have it all; better quality, easy to use and improved safety.


  • Gear system design for reduced effort when lifting loads.
  • Key internal components are CNC machined before being heat-treated and toughened.
  • All Challenger models are manufactured to comply with AS1418.2.


Download coming soon

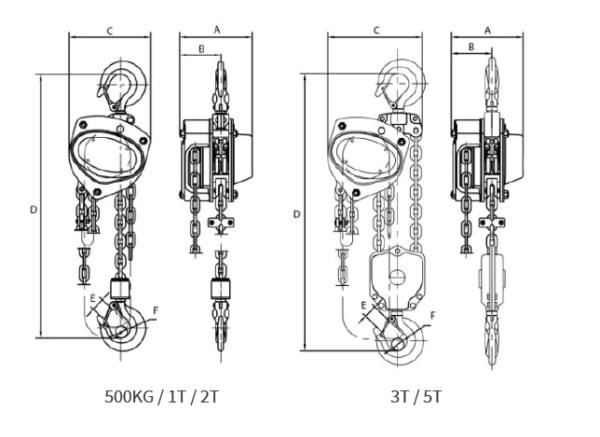

Part No. WLL
(tonnes)
HOL
(mtr)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F Dia.
(mm)
Weight
(kg)
215102 0.5 3 128 75 130 280 22 20 9
215202 0.5 6 128 75 130 280 22 20 10
215103 1 3 142 76 150 330 26 25 12
215203 1 6 142 76 150 330 26 25 16
215104 2 3 175 88 185 385 35 33 20
215204 2 6 175 88 185 385 35 33 25
215105 3 3 158 80 220 510 37 36 23
215205 3 6 183 90 225 615 43 43 34
215106 5 3 183 90 225 615 43 43 39
215206 5 6 183 90 225 615 43 43 50
