Pipe Lifting Hooks

Pipe Lifting Hooks are designed to suit standard engineered products without the need for a tailor-made solution. Safely handle concrete, steel and cast pipe sections or similar by an overhead crane with our pipe lifting hook. The pipe hook is designed to be used in pairs for the safe lifting of heavy pipes.


  • For use with steel or cast pipes
  • Included Sling Angle to be within 60° to 90°
  • Complies with A.S.4991-2004


Download coming soon
Product manual coming soon

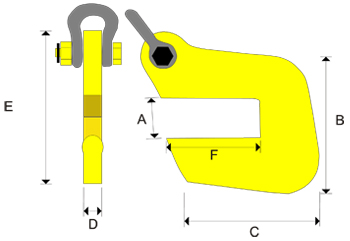

Part No. WLL (pair) (tonnes) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight (kg)
243345 4.5/pair 55 208 205 25 240 140 8.3
243375 7.5/pair 50 208 205 36 240 145 12.5
243316 16/pair 62 208 205 50 240 145 19.5
