Part No. | WLL (tonnes) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | L (mm) | Weight (kg) |
---|---|---|---|---|---|---|---|---|---|---|---|
243402 | 2 | 85 | 155 | 360 | 75 | 440 | 180 | 190 | 445 | 1330 | 310 |
243207 | 7 | 120 | 240 | 440 | 106 | 580 | 205 | 260 | 500 | 1385 | 610 |

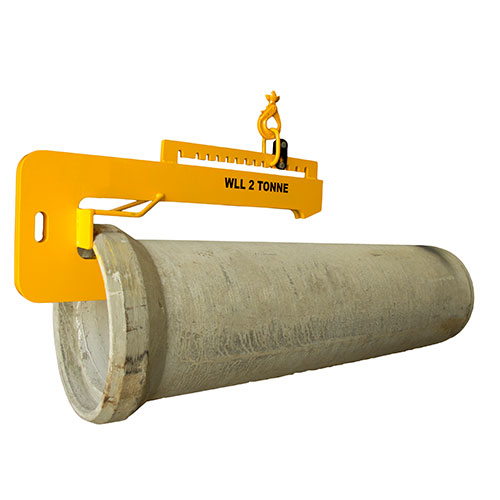

Concrete Pipe “C” Hook
Concrete Pipe “C” Hook is designed to suit standard engineered products without the need for a tailor-made solution. Safely handle concrete, steel and cast pipe sections or similar by an overhead crane with our pipe lifting hook. A Multi position head link allows for level adjustment for different pipe sizes.
- Backing plate allows to drive the pipe into position
- Complies to A.S. 4991-2004
