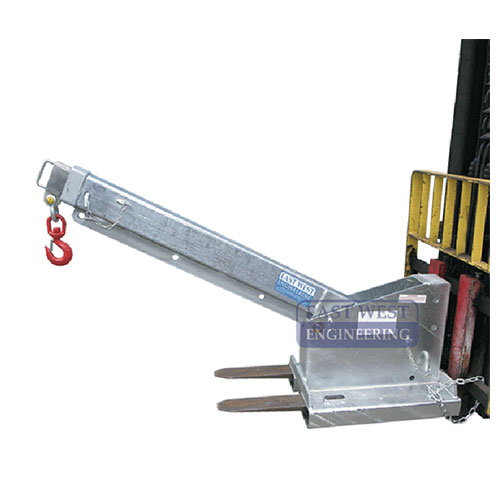

4.75t Tiltable Telescopic Jib

The TJCL50 tiltable telescopic jib is a versatile 4.75 tonne long length forklift jib designed with a tilt facility allowing extra lift height to compensate the hook & sling length lost, suitable for most lifting and general maintenance tasks.


  • 3.59m reach when fully extended.
  • 3 tilt angles allowing up to 2.4m extra height.
  • Zinc finish.


Download coming soon

Part No.Working Load Limit (WLL) per PositionLoad Centre
(mm)
Fork Pocket
Size
(mm)
Fork Pocket
Centres
(mm)
Weight
(kg)
Position12345678
242241Extension (mm)100014601920207024502830321035901000185 x 75370240
WLL (kg)475042753800330025001300760480
