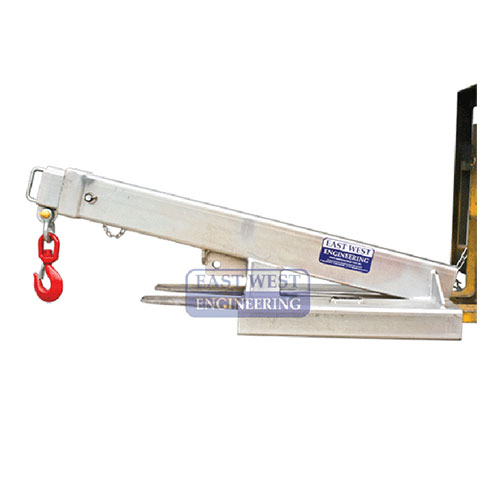

3.5t Angled Telescopic Jib

The FJA350 Angled telescopic jib is designed as an affordable general purpose jib for most lifting and maintenance requirements of forklifts that need to manoeuvre in confined spaces.


  • 2.36m reach when fully extended.
  • 1.5m overall length when retracted.
  • Zinc finish.


Download coming soon

Part No.Working Load Limit (WLL) per PositionLoad Centre
(mm)
Fork Pocket
Size
(mm)
Fork Pocket
Centres
(mm)
Weight
(kg)
Position1234
242241Extension (mm)800139018802365800185 x 65300115
WLL (kg)3500850500350
