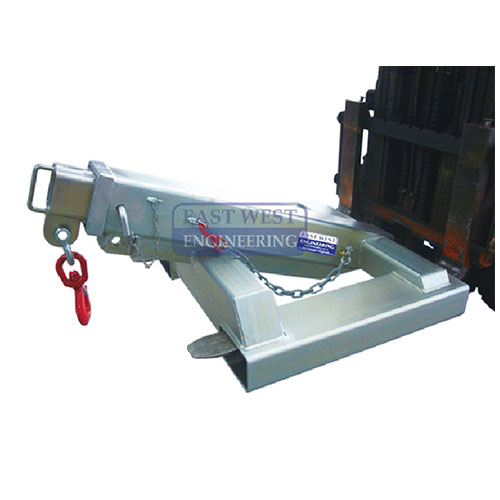

7.5t Angled Telescopic Jib

The FJA750 Angeled telescopic jib is a versatile 7.5T general purpose jib designed to suit most lifting and maintenance requirements of larger forklifts that need to manoeuvre in confined spaces.


  • 2.39m reach when fully extended.
  • 1.54m overall length when retracted.
  • Zinc finish.


Download coming soon

Part No.Working Load Limit (WLL) per PositionLoad Centre
(mm)
Fork Pocket
Size
(mm)
Fork Pocket
Centres
(mm)
Weight
(kg)
Position1234
242263Extension (mm)12751455192023901275230 x 110875390
WLL (kg)7500500027501250
