Multi Link (G80)

G80 multi links are comprised of a master link and two intermediate links, each with the same lifting capacity.


  • The intermediate links allow for back hooking and attachment of thimbles.
  • Yellow painted finish.
  • Complies with Australian Standard: AS 3776


Download coming soon

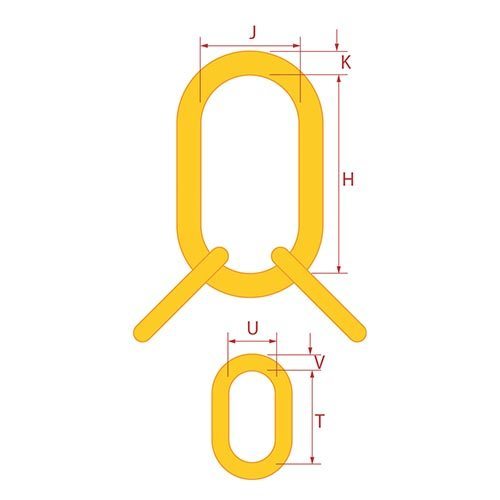

Part No. Chain Size – 2, 3 or 4 leg
(mm)
WLL
(tonnes)
H
(mm)
J
(mm)
K
(mm)
T
(mm)
U
(mm)
V
(mm)
Weight
(kg)
123010 10 5.5 240 120 26 114 57 20 4.00
123013 13 9.2 280 140 30 130 70 22 6.70
123016 16 13.8 300 150 32 160 80 30 11.10
123020 20 21.6 330 165 42 180 90 32 17.50
123022 22 26 360 180 50 200 100 40 25.20
123026 26 36.7 431 231 60 368 205 50 64.00
123032 32 54.5 473 263 70 431 231 60 103.00
