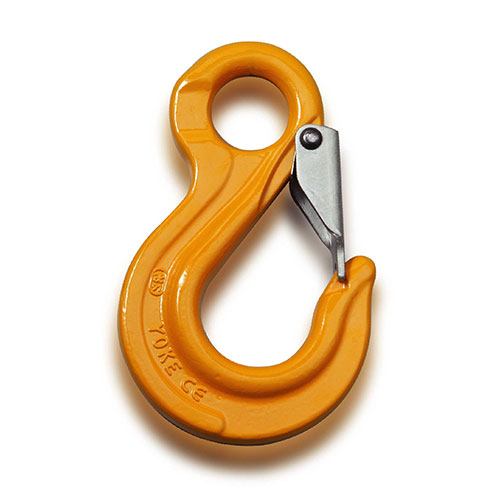

Eye Sling Hook c/w Safety Catch (G80)

G80 eye sling hooks with latch are an ideal lower end termination for chain sling assemblies.


  • Fitted with sturdy spring loaded safety latch for added security and lifting.
  • Yellow painted finish.
  • Complies with Australian Standard AS 3776


Download coming soon

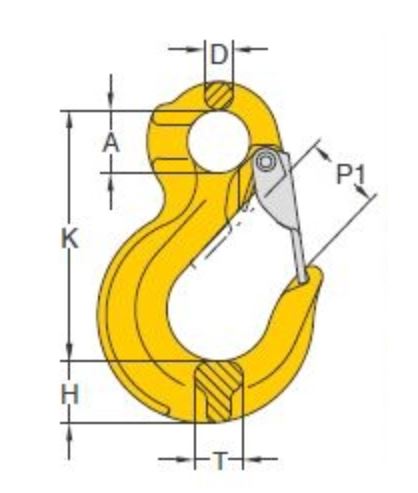

Part No. Chain Size
(mm)
WLL
(tonne)
A
(mm)
D
(mm)
H
(mm)
K
(mm)
P1
(mm)
T
(mm)
Weight
(kg)
127106 6 1.1 20 9 20 80 23 16 0.3
127108 7-8 2 25 11 23 98 28 20 0.5
127110 10 3.2 32 14 31 121 36 23 1.0
127113 13 5.3 40 18 38 152 40 23 1.7
127116 16 8 50 22 47 184 44 32 3.2
127120 20 12.5 60 26 48 218 45 43 5.5
127122 22 15 50 31 62 244 73 50 9.0
127126 26 21.2 64 35 80 279 77 60 13.5
127132 32 31.5 88 40 86 352 114 65 20.0
