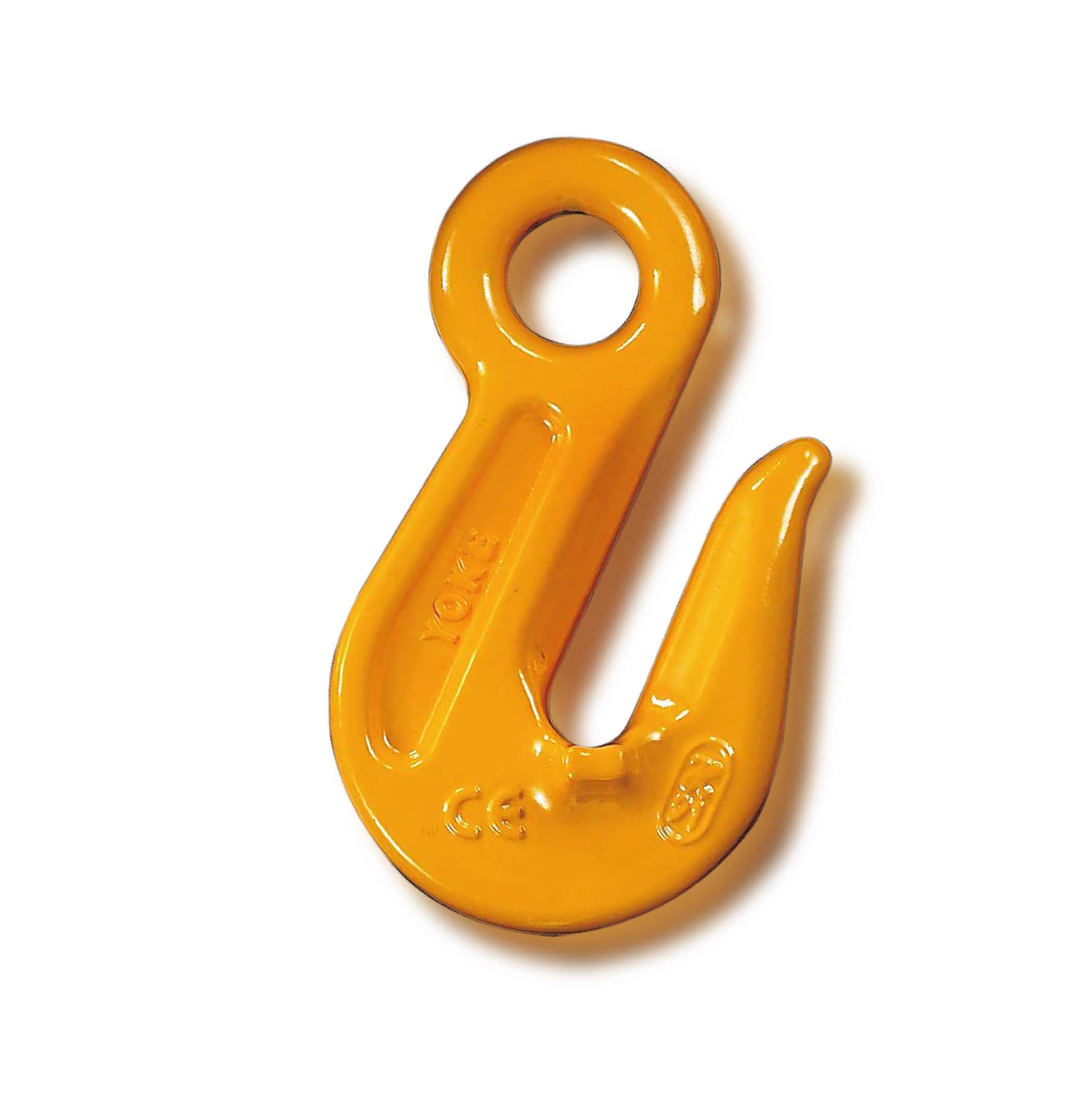

Eye Grab Hook (G80)

G80 eye grab hooks are specifically designed to shorten grade 80 chain in chain sling assemblies.

FeaturesDownloadManual

No reduction in WLL when used as a shortening hook on cradle type with supporting wings.
Traditional design in a yellow painted finish.
Complies with Australian Standard AS 3776

Product brochure coming soon

Product manual coming soon

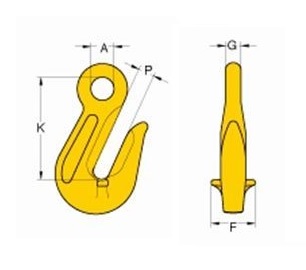

Part No.	Chain Size (mm)	WLL (tonne)	A (mm)	F (mm)	G (mm)	K (mm)	P (mm)	Weight (kg)
125106	6	1.1	13	30	8	51	8	0.2
125108	7-8	2	15	30	9	60	10	0.3
125110	10	3.2	20	41	13	84	13	0.6
125113	13	5.3	25	52	15	102	16	1.4
125116	16	8	30	57	20	114	20	2.3
125120	20	12.5	36	73	24	132	23	3.9
125122	22	15	38	70	26	165	26	4.7
125126	26	21.2	41	100	32	187	29	9.9
125132	32	31.5	61	127	40	230	37	21.4
