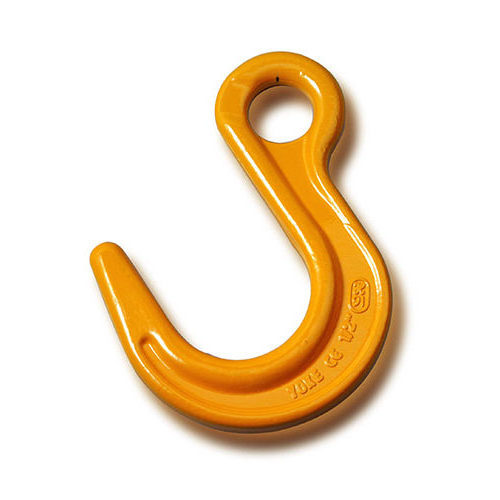

Eye Foundry Hook (G80)

G80 eye foundry hook is suitable for foundry applications and unusually bulky attachment points.

FeaturesDownloadManual

Not used for general chain sling applications, rather for use where a large throat opening is necessary.
Yellow painted finish.
Complies with Australian Standard AS 3776

Product brochure coming soon

Product manual coming soon

Part No.	Chain Size (mm)	WLL (tonne)	A (mm)	P (mm)	D (mm)	K (mm)	T (mm)	H (mm)	Weight (kg)
120208	7-8	2	24	62	12	123	19	27	0.8
120210	10	3.2	32	74	15	149	23	32	1.6
120213	13	5.3	40	88	19	180	32	39	2.5
120216	16	8	50	98	25	213	41	47	4.4
120220	20	12.5	60	113	26	248	46	57	9.3
