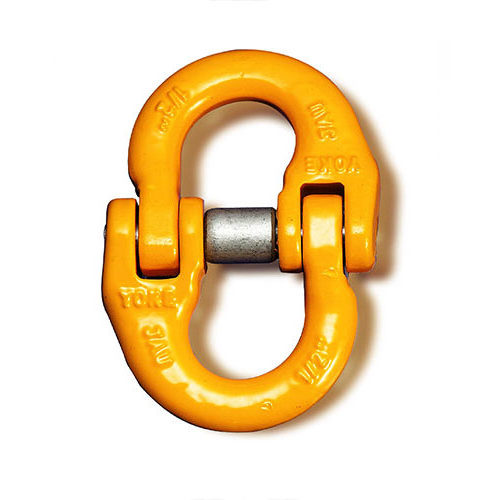

Coupler (G80)

G80 couplers are ideal to connect chain to a master link, hooks and other components.


  • Allows for instant assembly, dismantling and reassembly of slings safely and reliably.
  • Traditional design in a yellow painted finish.
  • Complies with Australian Standard: AS 3776.


Download coming soon

Part No.Chain Size
(mm)
WLL
(tonne)
A
(mm)
B
(mm)
D
(mm)
K
(mm)
Weight
(kg)
12400661.115177440.08
1240087-8218229570.2
124010103.2252611680.3
124013135.3303516910.7
1240161683628191001.1
1240202012.54246221221.9
12402222154959241523.0
1240262621.25562301625.0
1240323231.56979362029.0
